Features:

1. 24V-50V DC power supply, 8 level adjustable output current 1.0A-5.6A.
2. Bipolar constant current PWM drive output.
3. Optical isolation input signal, pulse response frequency up to 200kHz.
4. Strong anti-interference capability, achieve high precision positioning in complicated environment.
5. Low speed zero vibration, and low noise.
6. Fit for 42/57 stepper motor and widely used in automatic packaging machine, engraving machine and other automation equipments.

Specifications:

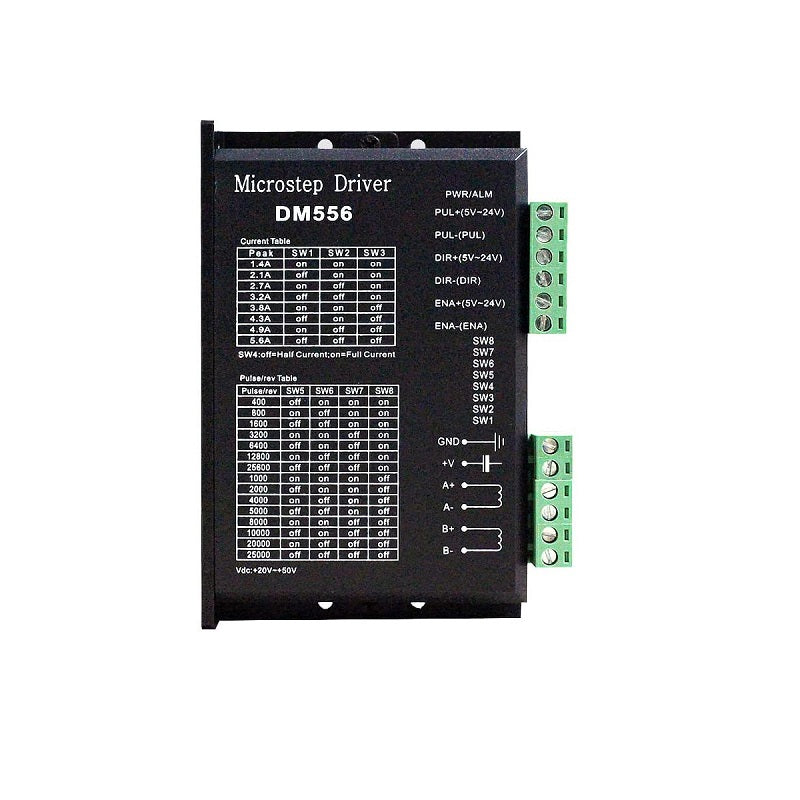

• Model: DM556
• Application: 42/57 stepper motor
• Input voltage: DC 20-50V
• Output current: 1.0-5.6A, 8 level adjustable, 0.5A resolution
• Drive method: Bipolar constant current PWM drive
• Pulse response frequency: 200kHz(Max)
• Insulation resistance: >500MΩ
• Insulation strength: 500V/min
• Dimensions: 118*75.5*34mm / 4.6*3.0*1.3in
