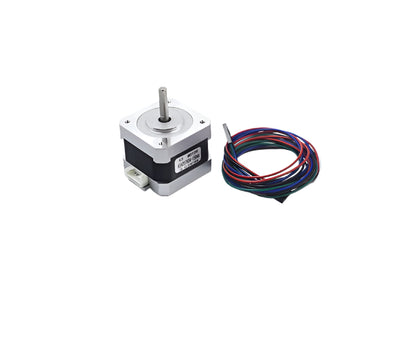

NEMA17 Stepper Motor 34mm Long, 1.5A

$9.99
Quantity

Features:

  1. High Quality NEMA 17 Stepper Motor Designed for 3D Printing
  2. Only Requires 1.2A For Cooler Operation Extremely Tight Tolerance Improves Accuracy and Consistency of Prints Great for X, Y and Z Axis Movement and Extruders Powering with >12v Power Supplies Increases Torque!
  3. Custom Winding.
  4. This little powerhouse is the heart of our direct drive MBE extruder.
  5. It makes an amazing 4.5kg*cm of torque at a low 1.2A, so its perfect for Pololu stepper drivers and will run a bit cooler than some of the other popular motors that use 1.5A.

Specifications:

  1. Motor Length 40mm
  2. Holding Torque: 4.5kg*cm
  3. Rated Voltage: 7.2v
  4. Step Angle: 1.8 Degrees
  5. Resistance Per Phase 6Ohm
  6. Inductance Per Phase 13mh
  7. Current Per Phase 1.2A
  8. Shaft Diameter: 5mm
  9. 4-Wire Red|Blue / Green|Black
  10. Cable: 720mm
