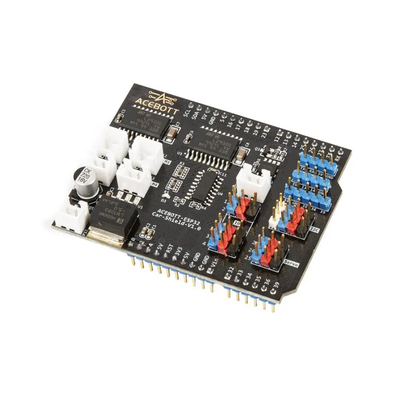

ACEBOTT-ESP32-Car-Shield-V1.0 is an expansion board for the ESP32-Max-V3.0 controller board, which is mainly used for the construction of smart cars. The expansion board adopts a standardized connection method, simplifies the hardware connection process, and the most important thing is to increase the function of motor drive, which improves the development efficiency and flexibility of the project, so that developers can focus more on the core functions and innovation of the project.

Features:

• Three 3-pin digital pins
• Two 3-pin analog pins
• Two rows of pin interfaces for ESP32-Max-V3.0
• Five DC motor interfaces
• Three I2C pins
• Three servo interfaces
• One serial port
• One ultrasonic interface
• One three-way Trace sensor interface
• One power interface (Max input voltage 15V Max output current 3A)
• Operating temperature 0~70℃
