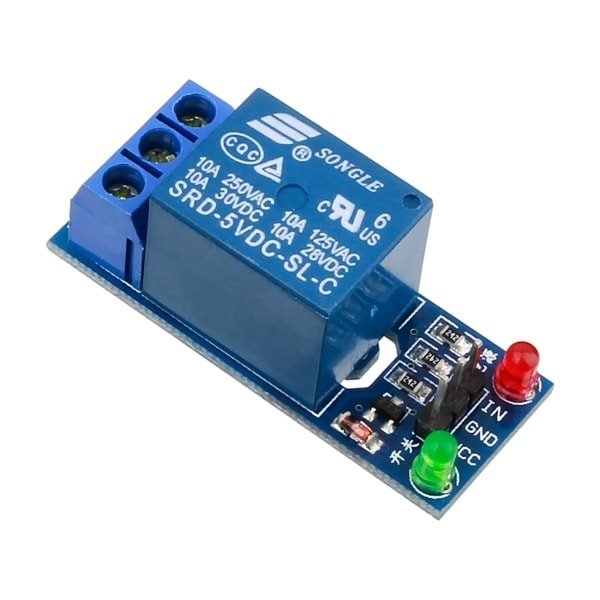

Features:

• The module uses genuine quality relay, normally open interfaces
• Using SMD optocoupler isolation, driving ability, stable performance
• The module can be high or low by a jumper setting trigger
• Fault-tolerant design, even if the control line is broken, the relay will not operate
• The power indicator (green), the relay status indicator (red)
• The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient

Specificaions:

• Maximum load: AC 250V/10A, DC 30V/10A

• Trigger current: 5mA

• Working voltage: 5V

• Module size: 50 x 26 x 18.5mm (L x W x H)

• Four mounting bolts holes, diameter 3.1mm

• DC+: positive power supply (VCC)

• DC-: negative power supply (GND)

• IN: can be high or low level control relay

• NO: normally open relay interface

• COM: Common Interface Relays

• NC: normally closed relay interface

• It is low level trigger when jumper connect to LOW pin

• It is high level trigger when jumper connect to HIGH pin
