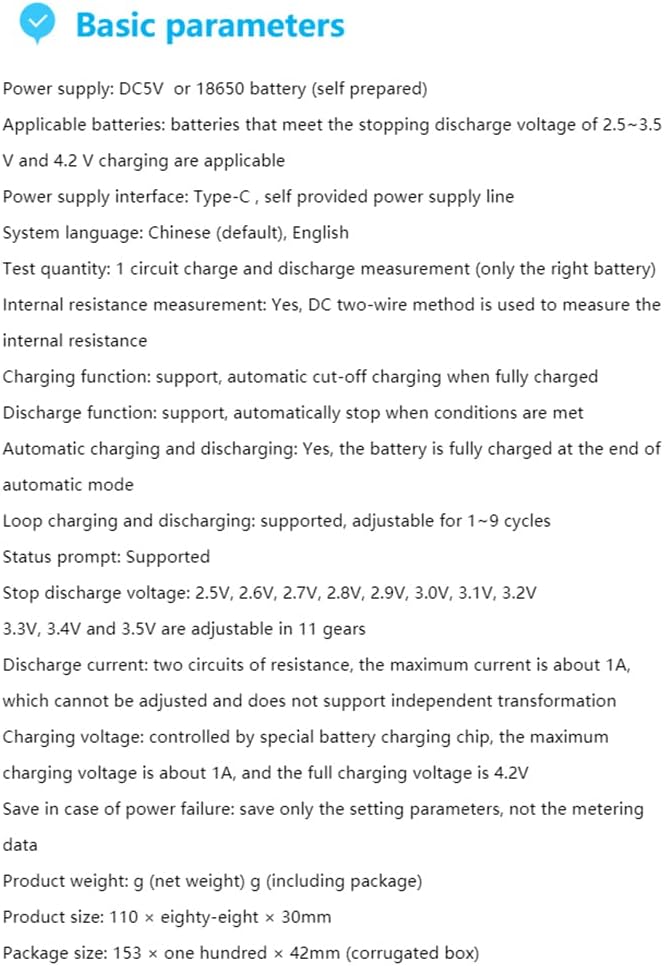

Specifications:

• Name: Battery Capacity Tester

• Material: printed circuit board

• Working power supplys: DC5V power supplys or 18650 battery (need to prepared by yourself)

• Applicable battery: meet the stop discharge voltage of 2.5-3.5V, 2.8V starts 4.2V full battery are applicable too.

• Power supplys interface: Type-C interface, power supplys cable self-provided (C-port mobilephone cable)
• Number of tests: 1-channel charging and discharging measurement (right-hand battery position only)

• Internal resistance measurement: supported, using the direct current two-wire method to test internal resistance

• Charging function: supported, full automatic cut-off charging (LiFePO4 charging not supported)

• Discharge function: supported, automatic stops when conditions are met, discharge current is not adjustable

• Automatic charging and discharging: supported, battery is fully-recharged at the end of automatic mode

• Cycle charging and discharging: supported, 1~9 cycles adjustable (only supported in auto mode)

• Status indication: supported

• Stops discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 levels adjustable

• Discharge current: two-way resistor, max. 1A current, not adjustable, does not support independent transformation

• Charging voltage: special battery charging chip control, max. 1A charging, full-charged voltage is 4.2V

• Power failure save: only the setting parameters are saved, not the measurement data

• Item size: 110 * 89 * 30mm / 4.33 * 3.50 * 1.18in
