Technical Specifications:

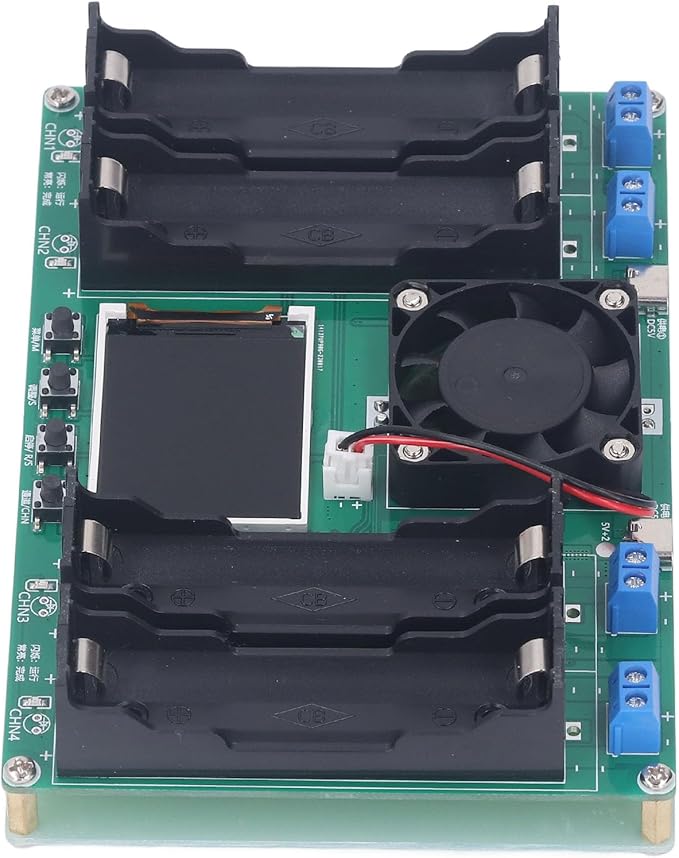

• Item Type: 18 650 Lithium Battery Capacity Tester

• Material: PCB

• Applicable Battery: Meet the stop disc harge voltage 2.5-3.5V, 4.2V charging batteries are applicable

• Power Supply Interface: Dual Type C Interface, Power Supply Cable (C Port Cell Phone Cable)

• System Language: English

• Test Quantity: 4 Channel Charging and Discharging Measurement

• Internal Resistance Measurement: Support, Using DC two wire method to test the internal resistance.

• Charging Function: Support, Full Automatic Cut Off Charging, Not Applicable to Li FePO4 Battery Charging.

• Disc harge Function: Support, Automatically stop when conditions are reached.

• Automatic Charging And Discharging: Support, The battery is fully c harged at the end of the automatic mode, not applicable to the charging of lithium iron p hosphate batteries.

• Cycle Charging And Discharging: Support, 1-9 Cycles Adjustable.

• Status Alert: Support

• Stop Disc harge Voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V,
  3.3V, 3.4V, 3.5V, Total 11 Adjustable Steps

• Disc harge Current: Maximum about 1A current, can not be adjusted, does not support independent transformation

• Heat Dissipation: Mode: Active Heat Dissipation

• High Temperature Protection: Support

• Charging Voltage: Professional Battery Charging Chip Control, Maximum About 1A Charging, Full Voltage 4.2V

• Power Failure Save: Only save the setup parameters, do not save the measurement data
