ATTINY88 Micro Development Board
$3.99
Unit price
Quantity

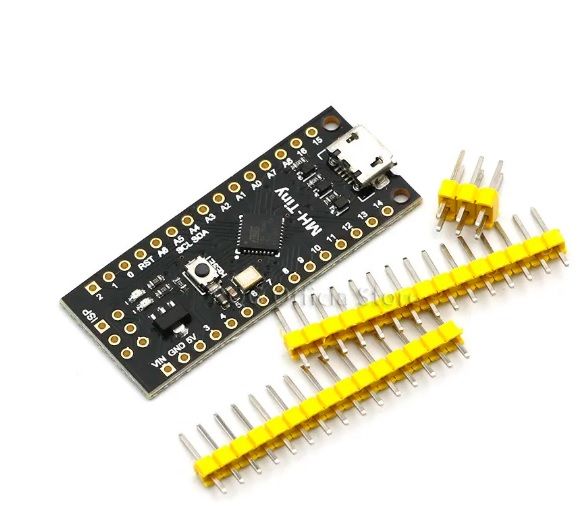

ATTiny88(16.0Mhz) based microcontroller development board similar to the Arduino line, only cheaper, smaller, and a bit less powerful. With the ability touse the familiar Arduino IDE the ATTiny88(16.0Mhz) is a great board to jump into electronics, or perfect for when an other board is too big or too much.The ATTiny88(16.0Mhz) is fully assembled except for the headers included and easy to solder them by yourself.
Specifications:
- Support for the Arduino IDE 1.0+ (OSX/Win/Linux)
- Power via USB or External Source - 5v or 7-35v (12v or less recommended, automatic selection)
- On-board 500ma 5V Regulator
- Built-in USB
- 26 I/O Pins (2 are used for USB only if your program actively communicates overUSB, otherwise you can use all 6 even if you are programming via USB)
- 8k Flash Memory (about 6k after bootloader)
- I2C and SPI
- 26-PWM (26 pins with Software PWM,only two(D9,D10) with hardware PWM )
- ADC on 8 pins
- Power LED and Test/Status LED
- Size(mm):44.5x18.3x3
