The Mega 2560 is an update for Mega, which it replaces.

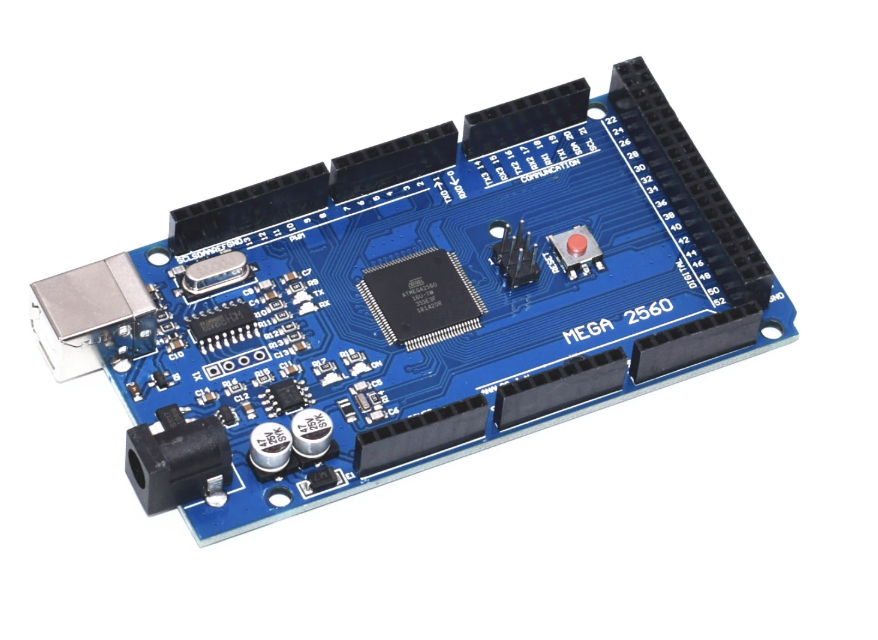

The board is a microcontroller board based on the ATmega2560-16AU .It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed

Product Summary:

• CH340G replace the Atmega 8U2/16U2


Specifications:

• Microcontroller: ATmega2560

• Clock Speed:16 MHz

• EEPROM: 4 KB

• SRAM: 8 KB

• Flash Memory: 256 KB of which 8 KB used by bootloader

• Operating Voltage: 5V

• Input Voltage (recommended): 7-12V

• Analog Input Pins: 16

• Digital I/O Pins: 54 (of which 14 provide PWM output)

• DC Current for 3.3V Pin: 50 mA

• DC Current per I/O Pin: 40 mA

• Size: 100*55mm
