Features:

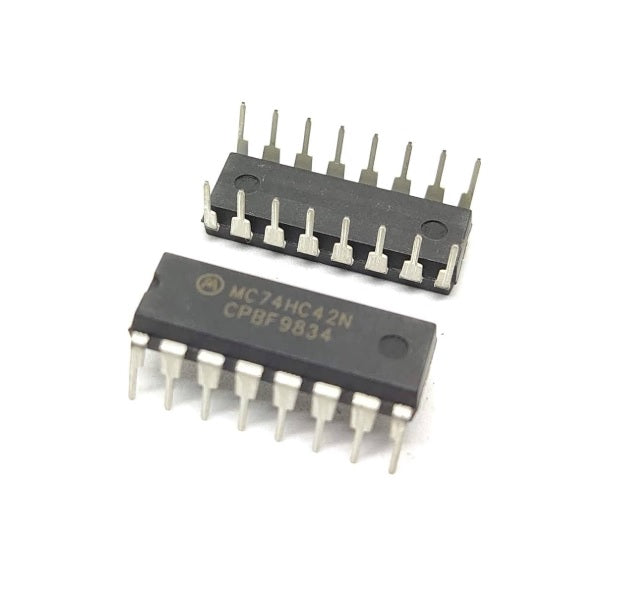

• The 74HC42N is a BCD to Decimal Decoder pin compatible with low power Schottky TTL (LSTTL).
• This decoder accepts four active high BCD inputs and provides 10 mutually exclusive active low outputs.
• The active low outputs facilitate addressing other MSI circuits with active low input enables.
• The logic design of the 42 series ensures that all outputs are high when binary codes greater than nine are applied to the inputs.
• The most significant input (A3) produces an useful inhibit function when the 42 series is used as a 1-of-8 decoder.
• The A3 input can also be used as the data input in an 8-output demultiplexer application.
• Mutually exclusive outputs; 1-of-8 Demultiplexing capability; Outputs disabled for input codes above nine; Standard output capability.
• Logic Family
• Base Number: 74HC42
• Logic Type: BCD to Decimal Decoder
• No. of Outputs: 10 Outputs
• No. of Pins: 16Pins
• Supply Voltage: 2V - 6V
• Logic IC Base Number: 7442
• Logic IC Family: 74HC
