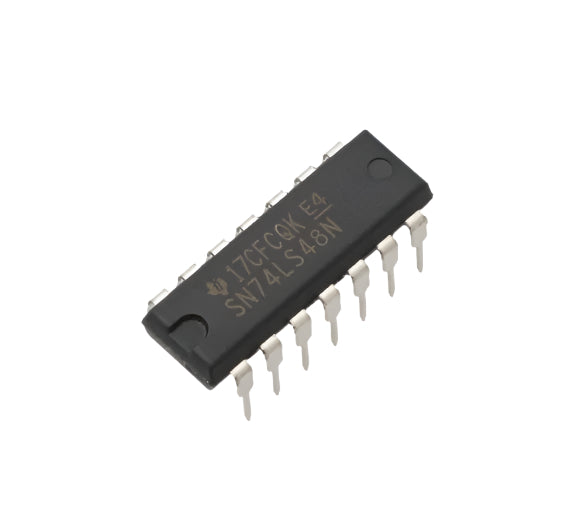

The 74LS48 is a BCD to 7-Segment Decoder/Driver IC, designed to convert Binary-Coded Decimal (BCD) input to the appropriate 7-segment display output for common-cathode LED displays. This IC is commonly used in applications where numeric displays are required, such as in digital clocks, counters, and other devices that use 7-segment displays for numeric output.

Key Features:

• Active-High Outputs: The 74LS48 IC provides active-high outputs, ideal for driving lamp buffers or common-cathode LED displays.
• Ripple Blanking Input/Output Controls: Includes full ripple-blanking input/output controls, allowing for more precise display management, particularly in multi-digit displays.
• Lamp-Test Input: The IC has a lamp test (LT) input, which allows testing of the 7-segment display without sending normal data.
• Leading/Trailing Zero Suppression: Automatically controls the leading and/or trailing-zero suppression to ensure cleaner display output, especially when showing numbers such as “00” or “000”.
• Blanking Input (BI): Includes an overriding blanking input (BI), which can be used to inhibit the display outputs or control the lamp intensity by pulsing.
• Lamp Intensity Modulation: Capable of controlling lamp intensity through modulation for enhanced visual effects.
• Unique Display Patterns: For BCD input counts above 9, the IC generates unique symbols to indicate invalid input, helping to authenticate the input conditions.
• TTL Compatibility: Inputs and outputs are fully compatible with TTL logic outputs, making it easy to integrate into digital systems.
• Internal Pull-Ups: The design includes internal pull-up resistors, eliminating the need for additional external resistors.

Applications:

• Digital Clocks: Ideal for driving 7-segment displays in clocks and timers.
• Counters: Perfect for use in counters, especially in systems that require displaying BCD numbers.
• Numeric Displays: Used in any device requiring the display of decimal numbers in a 7-segment format, such as calculators and electronic meters.
