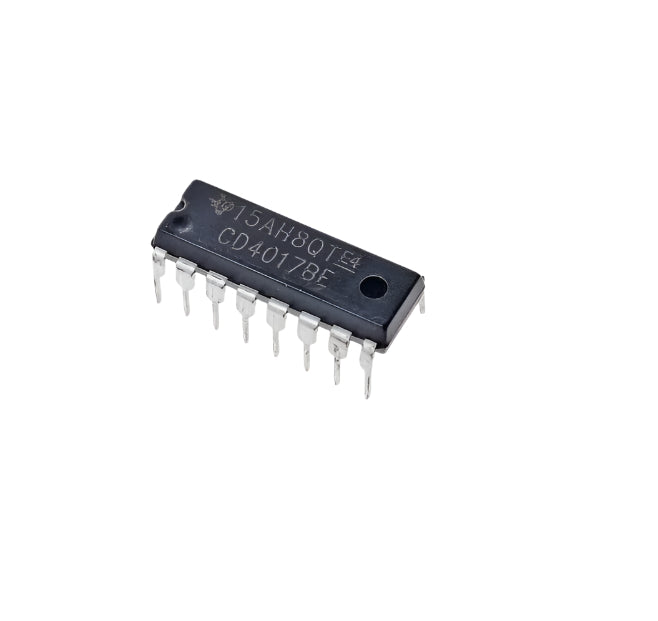

The CD4017 IC is a versatile decade counter/divider that is widely used in digital logic applications. This CMOS IC is designed to count up to ten events and provide a corresponding output for each count. It is ideal for use in various timing, counting, and sequencing applications. The CD4017 features a wide supply voltage range, low power consumption, and high noise immunity, making it a reliable choice for both hobbyist and professional projects.

Technical Specifications:

• IC Type: Decade Counter/Divider
• Model: CD4017
• Supply Voltage (VDD): 3V to 15V
• Current Consumption: Low power consumption
• Clock Input: Edge-triggered (positive edge)
• Output: 10 decoded outputs (Q0 to Q9)
• Carry Out (CO): Used for cascading multiple ICs
• Reset Pin: Resets the counter to zero
• Clock Enable (CE): Controls the clock input
• Frequency Range: Up to 10 MHz
• Package Type: Dual in-line package (DIP-16)

Features:

• Wide Supply Voltage Range: Operates from 3V to 15V
• Low Power Consumption: Ideal for battery-powered applications
• High Noise Immunity: Ensures reliable operation in noisy environments
• Edge-Triggered Clock Input: Counts on the positive edge of the clock signal
• Cascadable: Easily cascade multiple ICs for extended counting
• Versatile Applications: Suitable for timing, counting, and sequencing tasks

Applications:

• LED chasers and sequencers
• Digital clocks and timers
• Frequency dividers
• Event counters
• Traffic light controllers
• Signal conditioning

Enhance your digital logic projects with the CD4017 IC, a reliable and versatile decade counter that simplifies timing, counting, and sequencing applications.
