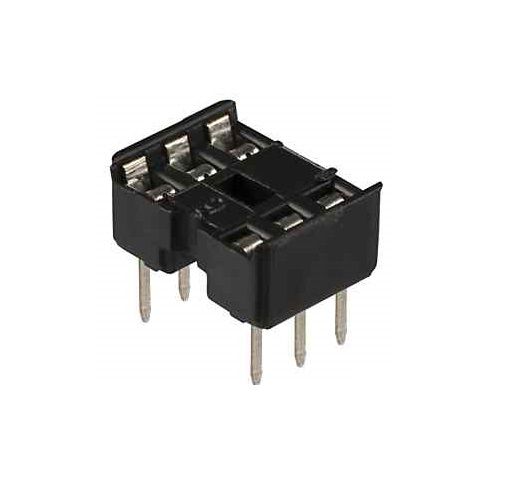

Dual-in-line narrow socket with black thermoplastic body and tin-plated copper alloy contacts. The sockets may be mounted end to end to achieve longer continuous runs. Sockets have chamfered side walls to assist insertion. One end is indented for easy identification of the polarisation.

Specifications:

• Number Pins : 6
• Pin Pitch : 0.1"/2.54mm
• Row Spacing : 0.3"/7.62mm
• Length : 7.62mm
• Width : 10.16mm
• Height : 4.80mm
• Contact Resistance : 20 mili-Ohm (Max)
• Contact Material : Copper Alloy
• Contact Plating : Tin
