The DS1302 is a trickle charge clock chip from that contains a real-time clock / calendar and 31 bytes of static RAM to communicate with the microcontroller through a simple serial interface. Real-time clock / calendar circuit provides seconds, minutes, hours, days, weeks, months, years of information, the number of days per month and leap year number of days can be adjusted automatically. The clock operation can be determined by the AM / PM indication in a 24 or 12 hour format. (1) RST reset (2) I / O data lines (3) SCLK serial clock. (1) RST reset (2) I / O data lines (3) SCLK serial clock. Clock / RAM read / write data in a byte or up to 31 bytes of character group communication. DS1302 power consumption is very low to maintain data and clock information when the power is less than 1mW.

Real-time clock with 2100 can be calculated before the seconds, minutes, hours, days, weeks, months, years of ability, as well as leap year adjustment
31 8-bit temporary data storage RAM
Serial I / O port mode makes the pin count the least
Wide operating voltage 2.0V
working current 2.0V, less than 300nA
Read / write clock or RAM data, there are two transfer methods Single byte transfer and multi-byte transmission character group mode
8-pin DIP package or optional 8-pin SOIC package according to surface mount
simple
3-wire interface compatible with TTL Vcc = 5V
Optional industrial temperature range -40 +85
dual power supply for the main power supply and backup power supply

Parameters:

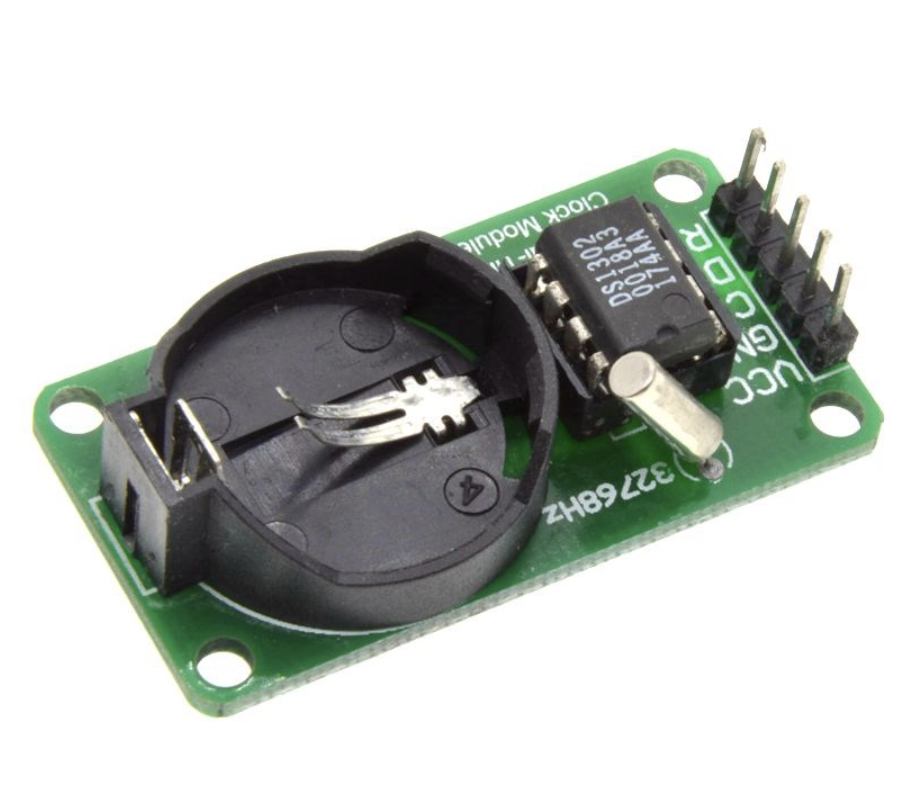

1. PCB for the single-panel, size: 44mm * 23mm * 1.6mm

2. With 4 positioning holes, diameter 3.1mm

3. Backup battery for the authentic celestial sphere CR2032, voltage 3V, current 260mAh, non-rechargeable battery. Theoretical data retention time greater than 10 years!

4. Crystal 32.768KHz, Japan imported crystal, matching capacitance of 6pF, size 2 * 6mm

5. DS1302 8-pin plug-in large chip made, the chip below IC Block, easy to replace and plug the chip

6. Module operating voltage is compatible with 3.3V / 5V, and 5V and 3.3V single-chip connection

7. Operating temperature: 0 ° --- 70 °
