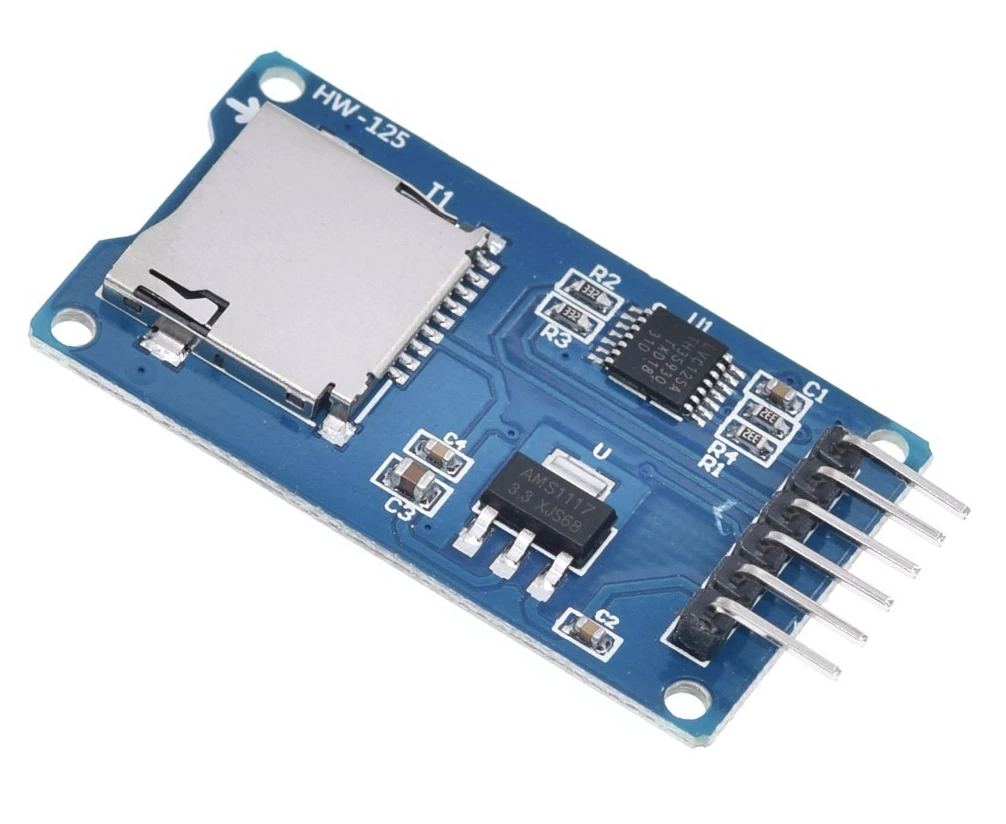

Specifications:

• Supply voltage: 4.5 V to 5.5 V
• Integrated voltage regulator: 3.3 V on SPI pins
• Current: about 80mA
• Interface: SPI
• Pins’ pitch: 2.54 mm
• Mounting holes M2: spacing of 38 mm and 20 mm
• Module dimensions: 42 x 24 mm

Applications of Micro SD Card Adapter Module

Here are some of the applications of the Micro SD Card Adapter Module.

1. Data loggers
2. Audio, Video storage, and Visualization
3. Expandable memory

Pin Configuration of Micro SD Card Adapter Module

The module contains 6 pins for power and communicating with the controller. The table below describes the pin type and role of each pin on the module.
