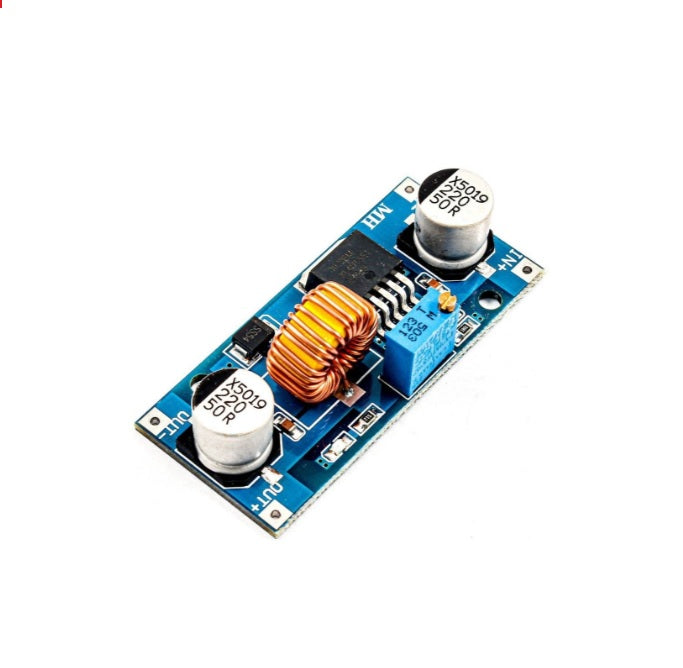

5A high power, high efficiency, low ripple, with power indicator. The module can be widely used in the step-down field where the input voltage is higher than the output voltage, such as battery, power transformer, DIY adjustable power supply, 24V car notebook power supply, industrial equipment step-down, 12V to 3.3V, 12V to 5V, 24V 5V, 24V to 12V, 36V to 24V, etc. Built to strict quality control standards, design improved for more durability. The buck module can easily reach 4.5A, the power can reach 75W, and has a very high cost performance. The product uses high quality environmentally friendly materials and is highly practical.

Specifications:

• Module highlights: 5A high power, high efficiency and low ripple with power indicator
• Module Properties: non-isolated buck module (BUCK)
• Input voltage: 8-36V (input please try not to exceed 38V)
• Output voltage: 1.25-32V continuously adjustable
• Output Current: 0-5A
• Output Power: 75W
• Operating temperature: -40 to +85 degrees
• Operating frequency: 180KHz
• Conversion efficiency: up to 96%
• Load regulation: S (I) ≤0.8% (input 24V, output 12V, load varies from 1 ~ 4.5A measured)
• Voltage Regulation: S (u) ≤0.8% (output 12V, when 4A, when 18 ~ 32V voltage change from the measured)
• Power Indicator: Yes
• Short circuit protection: Yes (limit current 8A)
• Overtemperature protection: (automatically shut off the output after overtemperature)
• Input reverse polarity protection: No, (if necessary, please enter the string into the high current diode)
• Installation: two 3mm screws
• Connection: Welding, V-IN is the input, V-OUT is the output
• Module dimensions: 54 x 23 x 15mm (L x W x H)

Application:

• such as battery
• power transformer
• DIY adjustable regulated power supply
• 24V Vehicle notebook power supply
• industrial equipment buck.12V buck to 3.3V, 12V buck to 5V, 24V buck to 5V,24V buck to 12V, 36V buck to 24V etc.
