Specifications:

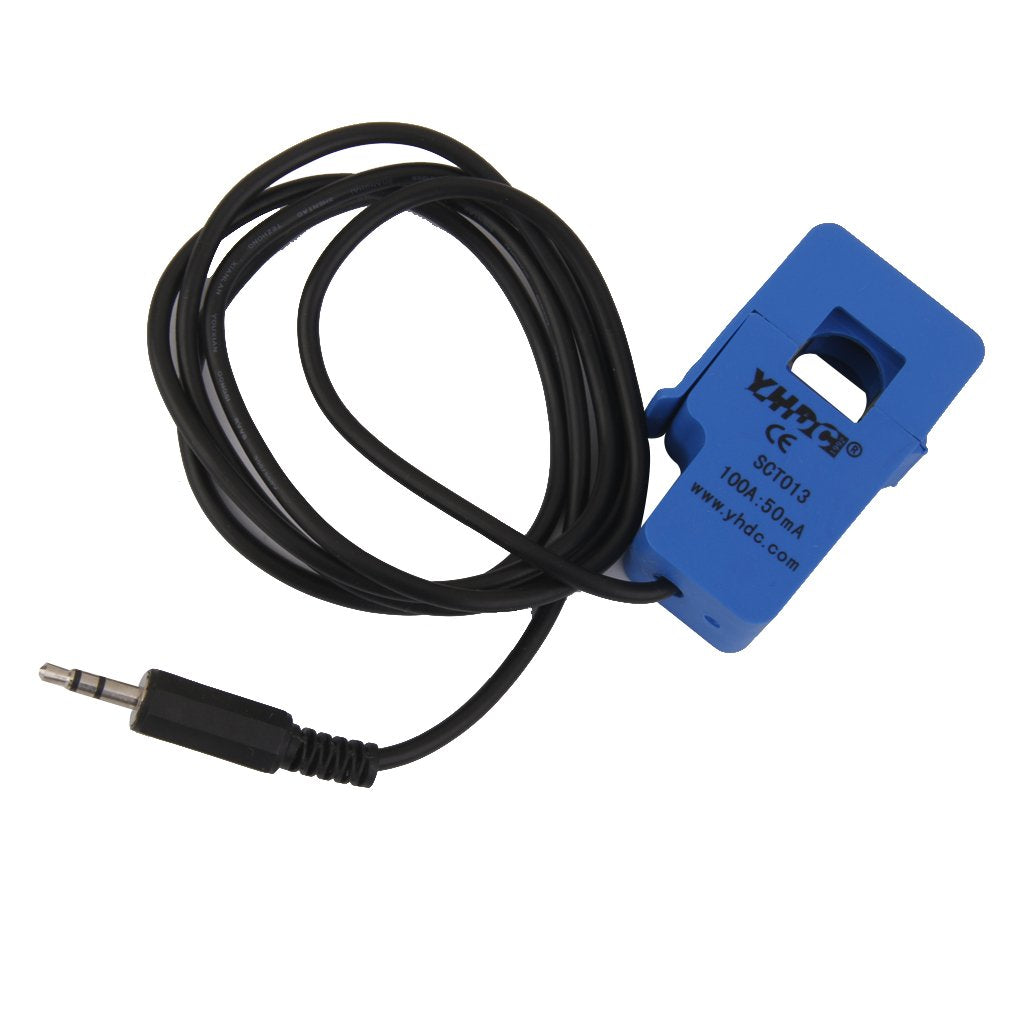

- Model: SCT013 Non-invasive current transformer
- Meet UL94-V0 flame retardant properties
- Two form of output current,
- Voltage (voltage output built-in the sampling resistor)
- Non-linearity +/-3%(10%-120% rated input current)
- Reference project: Open Energy Monitor
- Core Material: Ferrite
- Dielectric Strength:6000V AC/1min
- Anti-flaming rate:UL94-V0
- Mechanical strength: opening and closing times, no less than 1000 times (20 Celsius)
- Opening Size: Approx. 0.51 x 0.51inch / 13 x 13mm
- Dielectric Strength:6000V AC/1min
- Working Temperature:-25-70 Celsius
- Cable Length: Approx. 41.37 inch / 105cm
Application:
Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
Package Include:1 x Split Core Current Transformer SCT013
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
