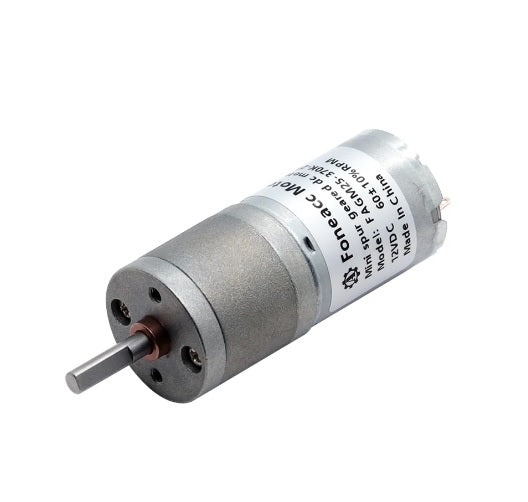

CGM25-370 DC Motor

$9.99
Quantity

Features:

  • Model: GM25-370 micro metal gearmotor;
  • Gearbox: 25 mm metal spur gear reducer;
  • Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
  • Rated Torque: Max. 5Kgf-cm ;
  • Size : Φ25 * L TBD ;
  • Shaft : Φ4mm D-cut 0.5mm, custom;
  • Encoder : magnetic encoder available;
  • Commutation: Carbon brush/Graphite brush/Metal brush;
  • Construction: micro Permanent Magnet iron cored dc electric motor;

GM25-370 dc geared motor data examples:

GM25-370 Gear Box Data:

Gearbox Length (mm) Stages Reduction Ratio Rated Torque Bearable Maximum Instant Torque
kg.cm
19 4 15.5/1 20.4/1     1 3
21 5 26/1 30/1 34/1 45/1 2 6
23 6 57/1 75/1 98/1   2.5 7
25 7 125/1 165/1 217/1   3 8
27 8 274/1 362/1 478/1   3 8
CGM25-370 DC Motor
