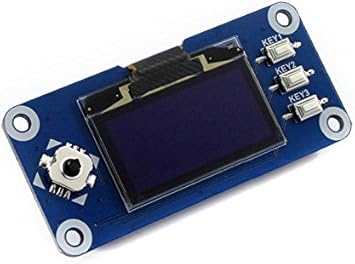

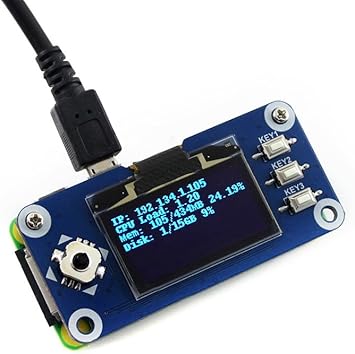

This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface.

Trying to add a control interface for your Pi? Even making the Pi into a handheld game console? This compact display would be the ideal choice.

Features:

• Standard RPi connectivity, compatible with and direct-pluggable onto RPi 2B/3B/Zero/Zero W

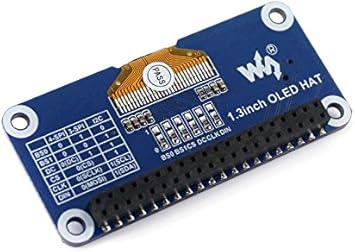

• Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor

• 1x joystick (5-position), 3x pushbuttons, handy and useful

• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications:

• Driver: SH1106

• Interface: 4-wire SPI, 3-wire SPI, I2C

• Display color: blue

• Resolution: 128x64

• Operating voltage: 3.3V


Package Content:

• 1.3inch OLED HAT x1

• RPi screws pack (2pcs) x1
