Robot Pi Shop

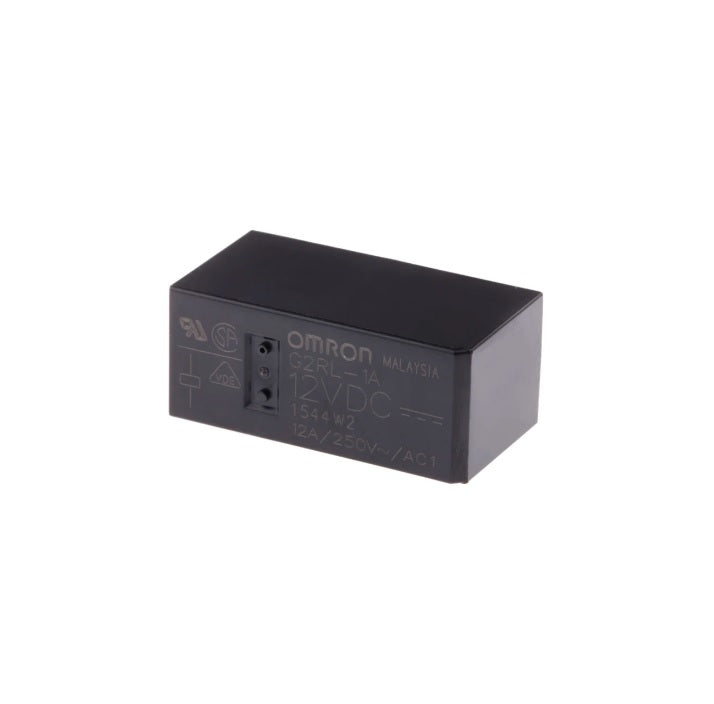

12 VDC 12A Relay

$1.50
Quantity
Pickup available at Robot Pi Shop

Specifications:

Coil Voltage 12V dc
Contact Configuration SPST
Mounting Type PCB Mount
Switching Current 12A
Number of Poles 1
Latching No
Terminal Type Through Hole
Length 29mm
Coil Resistance 360Ω
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Depth 12.7mm
Contact Material Silver
Series G2RL
Height 15.7mm
Maximum Switching Power AC 3 kVA
Application Power
12 VDC 12A Relay
