3 Pin Screw Terminal Connector

$0.45
Quantity
Pickup available at Robot Pi Shop

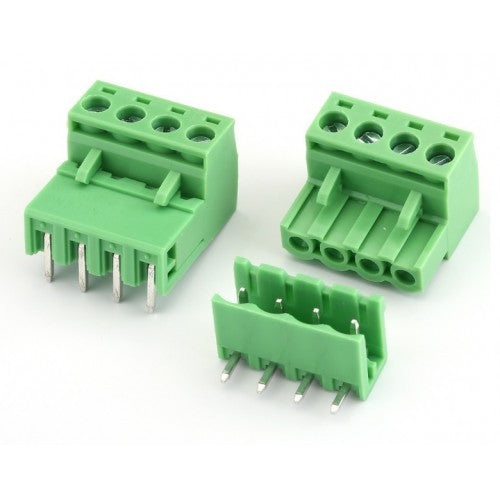

Standard plug in type screw terminal block with right angle PCB mount male connector. Pin spacing is 5.08mm.

Technical Parameters:

  • Maximum rated voltage - 300V
  • Maximum rated current  - 15A
  • Pin spacing - 5.08mm
  • Wire gauge - 28-12AWG
  • Soldering Temperature - +250℃ for 5seconds
  • Insulation -  5000MΩ/1000V
3 Pin Screw Terminal Connector
