Features:

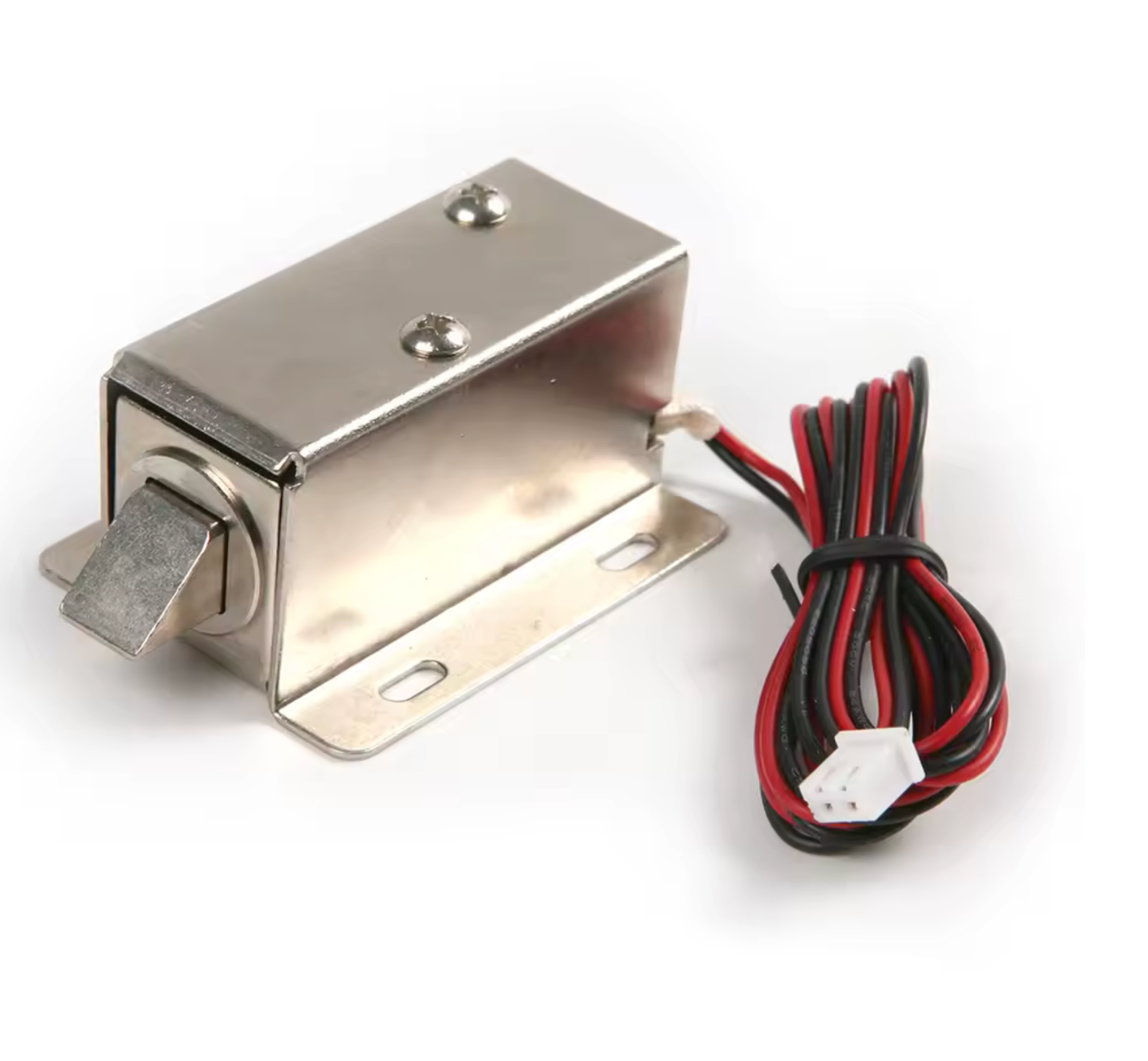

High quality ultra-compact electric lock.Rustproof, durable, safety, convenient to use.Applicable for being installed in the escape doo or fire door electronic controlled system.Adopts the principle of electric magnetism , when the current through the silicon, the electromagnetic lock will achieve a strong suction which tightly suck the iron, thus lock the door.

Instructions:

When it has been connected the wire and the current is available, the electric lock can control door's opening and closing.

Specifications:

• Material: Iron
• color: Silver tone
• Wire quantity: 1pc black+1pc red
• Wire length: 11cm
• Voltage/Current: DC12V/0.83A
• Operating temperature: -5℃~55℃
• Size: 55*28*30mm
