Specifications:

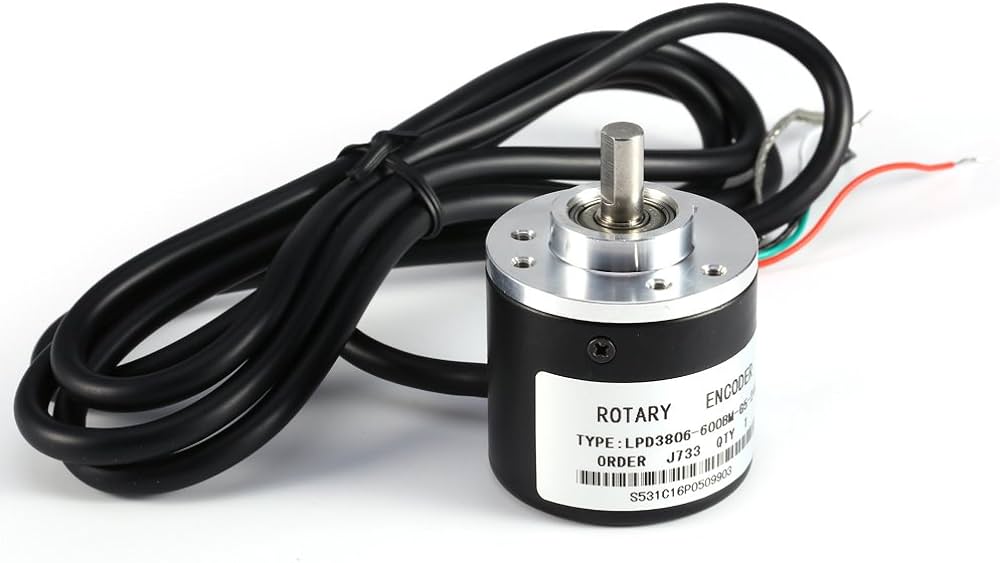

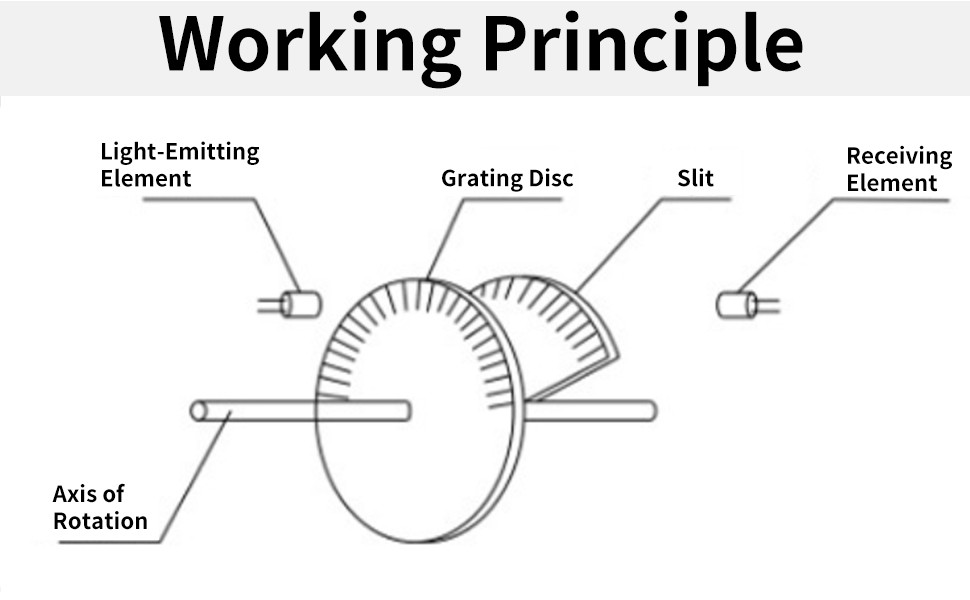

• Encoder 600 Incremental

• 600 p/r (single phase 600 pulses/R, two phase 4 frequency doubling to 2400 pulses)

• Power supply: DC5-24V

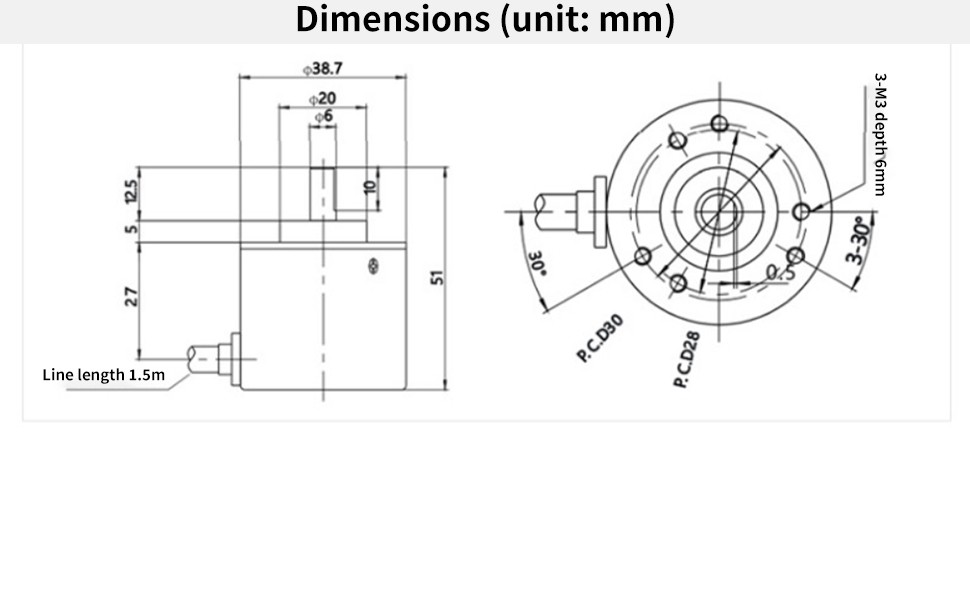

• Shaft: 6*13mm/0.23*0.51"

• Size: 38*35.5mm/1.49*1.39"

• Output :AB 2 phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type

• Maximum mechanical speed: 5000 R / min

• Response frequency: 0-20KHz

• Cable length: 1.5 meters

Note: AB 2 phase output must not be directly connected with VCC, otherwise it will burn the output triode, because different parties, and can not open the terminal

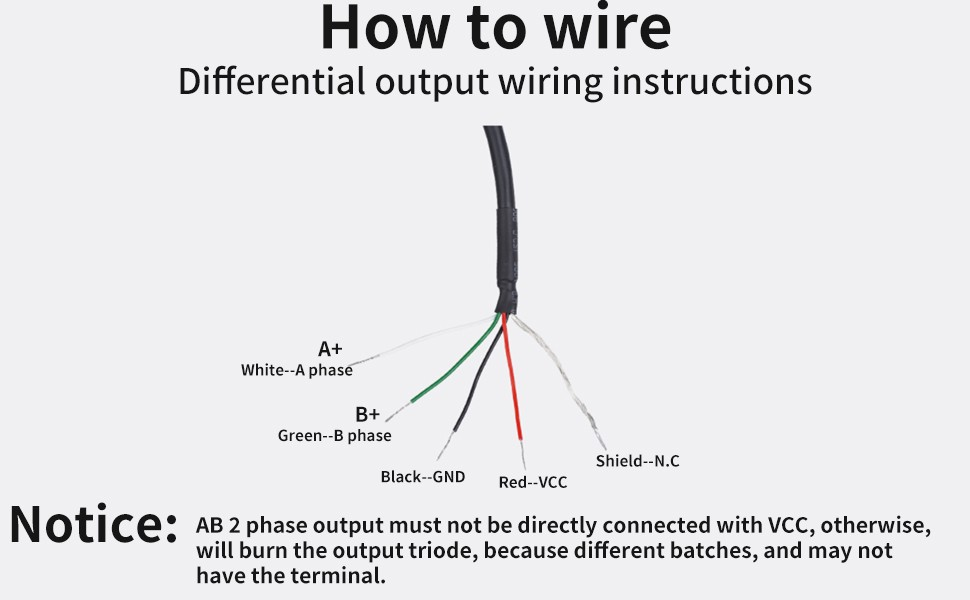

Connection:
