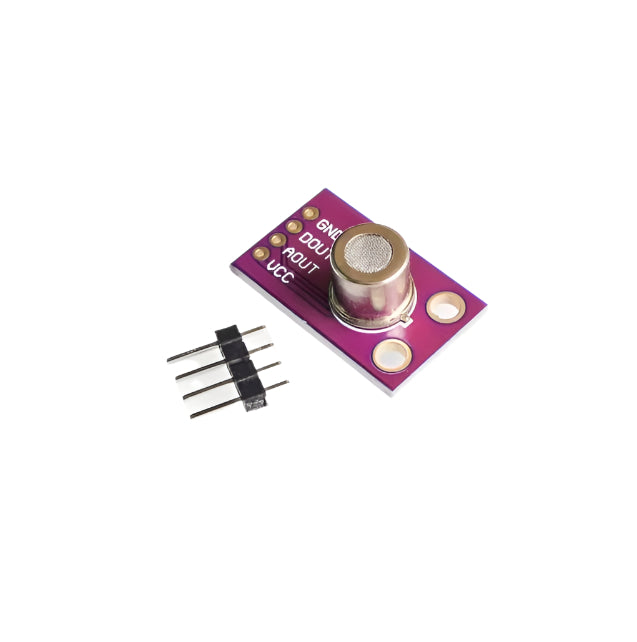

MS-1100 VOC Gas Sensor

$11.99
Quantity

Features:

  • MS-1100 sensor is mainly used to detect VOC gas such as formaldehyde, toluene, benzene, etc.
  • It is a semiconductor type sensor product, which is widely used in ventilation equipment, ventilating fan, air filter, hood and other equipment.
  • It has extremely high sensitivity and stability, and can detect gases above 0.1ppm.
  • It is suitable for detecting various organic volatile components such as formaldehyde, benzene, xylene, etc. in the air.

Specifications:

  1. The heating voltage:5V+/-2%
  2. Working current:100mA (max)
  3. The circuit voltage: 4.Sensitivity:>3%
  4. Response time:<5s (preheat 3-5 minutes)
  5. Response time:>10s
  6. The component power consumption: =<430mW
  7. Working temperature:-10~60 celsius (nominal temperature 20 celsius)
  8. Humidity:90%RH (nominal humidity 65%RH)
