Specifications:

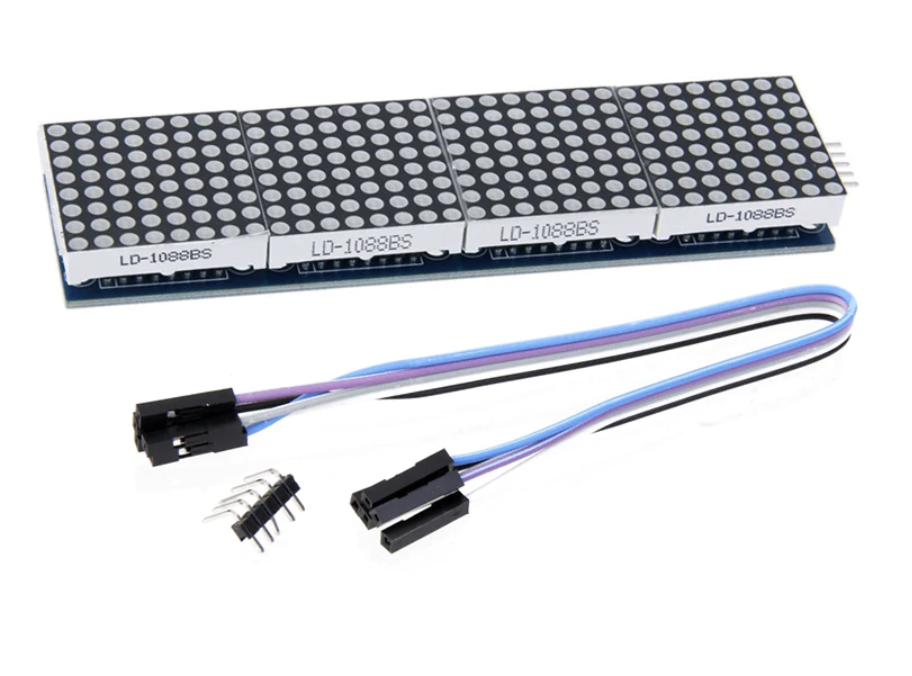

• A single module can drive a 8x8 dot matrix common cathode

• Microcontroller 4 In One Display with 5P Line
• Operating Voltage: 5V

• Dimensions: 12.8X12.8X1.3cm

• Fixing screws with 64 holes with a diameter 3mm

• Module with input and output interfaces, support for cascading multiple modules

• The left side of the module to the input port, the right to an output port

• When the control of a single module, simply input port connected to CPU

• When a plurality of cascaded modules, input and output termination CPU, an input terminal of the second output end of the first module a module, the first two modules of the input terminal of the three termination modules, and so on...


Wiring:

• VCC 5V

• GND GND

• DIN P2.2

• CS P2.1

• CLK P2.0
