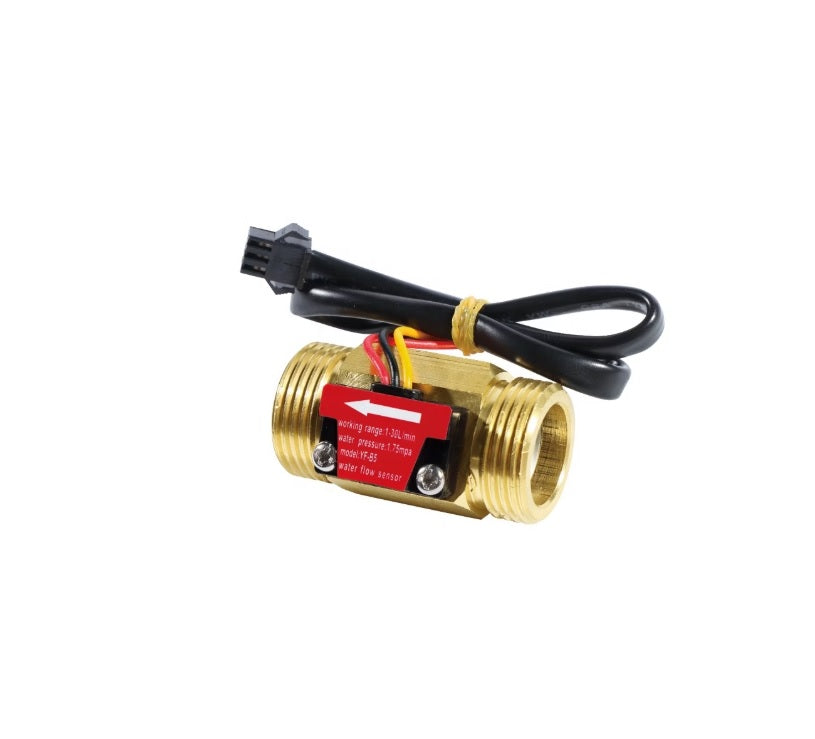

Water Flow Sensor (Sea) YF-B5 Flowmeter G3/4 1-30L/min 5-15V Brass
The water flow sensor functions as a tool to detect the rate of water flow within a tank or pipeline. Embedded within the sensor is a Hall element, which is activated as liquid passes through. This movement induces rotation in the Hall element. Through analyzing the rotational speed of this element, the water flow sensor delivers an accurate measurement of the flow rate within the pipe, offering precise data regarding the volume of water passing through.
Specifications:
| Parameter | Specification |
|---|---|
| Sensor Type | Hall Effect Sensor, Digital Output |
| Product Material | Brass |
| Flow Range / Accuracy | 1-30L/min, ±3% |
| Rated Voltage | DC 5-18V |
| Max Working Current | 10mA |
| Withstand Hydraulic Pressure | >1.75MPa |
| Working Voltage Range | DC 5-24V |
| Insulation Resistance | >100MΩ |
| Pulse Characteristic | 11*Q=L/min, ±3% |
| Medium Temperature | -20°C to +80°C |
| Max Output Pulse | >DC 4.7V (Input Voltage DC 5V) |
| Min Output Pulse | >DC 0.5V (Input Voltage DC 5V) |
| Output Pulse Duty Ratio | 50%±10% |
| Applicable Medium | Water, Tap-Water |
