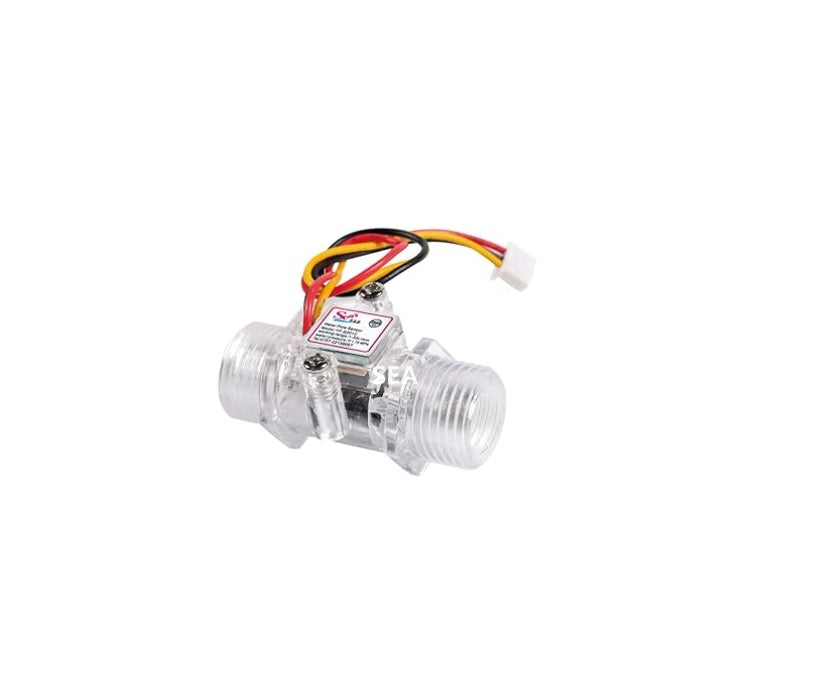

Transparent Water Flow Sensor (Sea) YF-S201C Flowmeter G1/2 1-30L/min 5-15V

• The water flow sensor is mainly composed of a plastic valve, a water flow rotor assembly and a hall sensor.

• It is equipped with a water inlet at the end of the water heater to detect the water flow rate.

• When water passes through the water flow rotor assembly, the magnetic rotor rotates and its speed changes with the flow rate.

• The hall sensor outputs the corresponding pulse signal and feeds back to the controller.

• Judge the water size and adjust it. Product appearance and convenience, small size, easy installation, and the impeller is embedded with stainless steel beads, which is wearable.

• Circuit and water isolation design, Hall elements are imported, and the valve is made of transparent material to facilitate observation of water and rotor conditions.

• All raw materials are in line with ROHS testing standards.

• Scope of application: suitable for water heaters, credit cards, automatic water vending machines, and other flow measuring devices.

Specification/Features:

• Minimum working voltage: DC4.5

• Maximum working current: 15mA (DC 5V)

• Working voltage range: DC 5-15V

• Load capacity: ≤ 10mA (DC 5V)

• Operating Temperature Range: ≤ 80 ℃

• Working humidity: 35% ~ 90% RH (no frosting state)

• Allowable pressure: below 1.75Mpa

• Temperature: -25℃~+80℃

• Storage humidity: 25% ~ 95% RH

• Frequency: F = 5 * Q(L/Min)-3

• Error: ± 2%

• Voltage: 3.5-24V DC, current not more than 10mA

• After one litre of flow, output 300 pulses.
• Output format: square wave (NPN signal)
