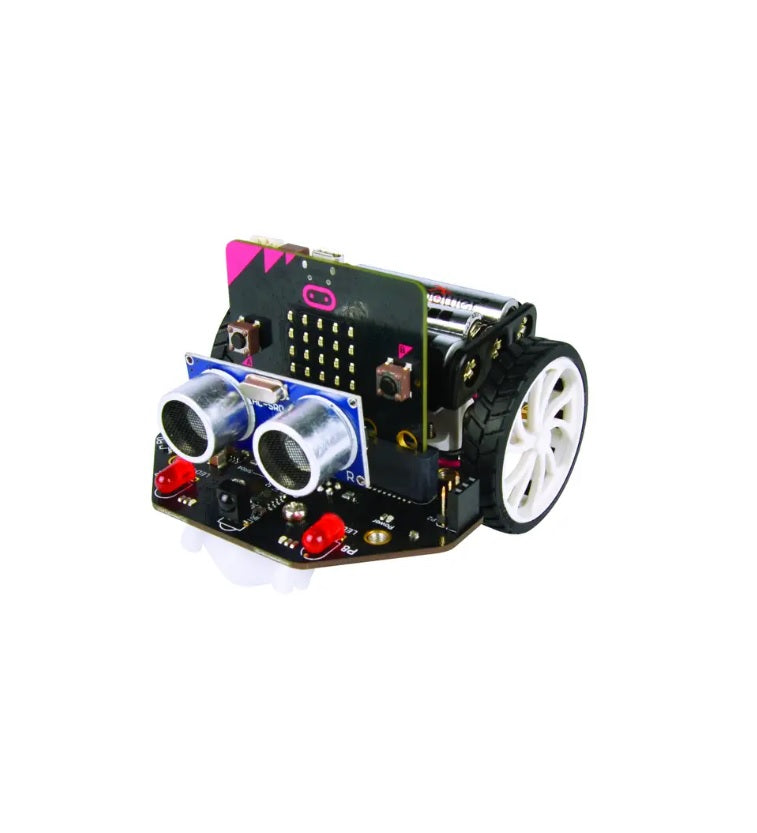

I am Maqueen

Maqueen is an easy-to-use micro:bit programming robot for STEAM education, which inherits the playability and simple operation of micro:bit. With a mini body, play-and-play, it allows students to quickly learn graphical programming in an entertaining way while nurturing their interests in science and logical thinking.

What are the features of Maqueen?

• Support for Makecode, will support Scratch and python later.
• Small size, flexible movement.
• All-metal miniature gear motor, good quality, strong driving force.
• Line patrol, ambient light, LED lights, ultrasonic interface, servo interface, buzzer, I2C interface, mechanical expansion screw hole, etc. ... full-featured, highly expandable.
• Exclusive customized POM bearing wheel, flexible and reliable, strong obstacle crossing ability.
• Easy to install, easy to use.

Function Diagram

Features

• Small in size, easy to assembly in 4 steps.
• Interactive projects with light, sound,motion.
• Contents: algorithm and programming, computing system.
• Combining with Maqueen Mechanic and GamePad to explore more possibilities.

Specification

• Supply Voltage: 3.5V-5V DC ( Three AAA batteries or 3.6V~3.7V lithium battery )
• Infrared Grayscale Sensor(High-low level) x 2
• Buzzer x 1
• Infrared Receiver (NEC decoder) x 1
• LED Lights (High-low level control) x 2
• RGB Ambient Light (16 million colors) x 4
• SR04, SR04P Ultrasonic Interface(5V) x 1
• IIC Interface (5V) x 1
• Servo Interface (S1 S2)x 2
• Gravity Extension Interfaces (P0, P1, P2) x 3
• N20 All-metal Gear Motor x 2
• Motor Drive Mode: PWM motor drive
• Bracket and Protective Cover Extension M3 Screw Hole x 6
• Programming Method: Makecode graphical programming, Mind graphical programming (based on Scratch 3.0)
• Dimension: 81mm x 85 mm x 44mm/3.19 x 3.35 x 1.73in
