he KY-006 Passive Piezoelectric Buzzer module can produce a range of sound tones depending on the input signal fequency. To generate single-tone sounds use the KY-012 Active Buzzer.
Compatible with popular microcontrollers like Arduino, Raspberry Pi, ESP32 and others.

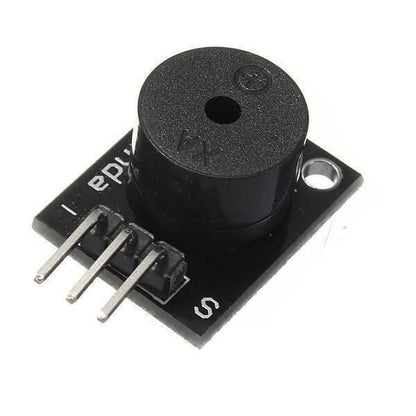

This module consists of a passive buzzer and 3 male header pins. You can use it generate tones between 1.5 to 2.5kHz by switching it on and off repeatedly at different frequencies either using delays or PWM.
Operating Voltage | 1.5V ~ 15V DC |
Tone Generation Range | 1.5kHz ~ 2.5kHz |
Board Dimensions | 18.5mm x 15mm [0.728in x 0.591in] |
CONNECTION DIAGRAM
Connect the module signal (S) to pin 8 on the Arduino and ground (-) to GND.
The middle pin is not used.
KY-006 | Arduino |
---|---|
S | Pin 8 |
middle | |
– | GND |
