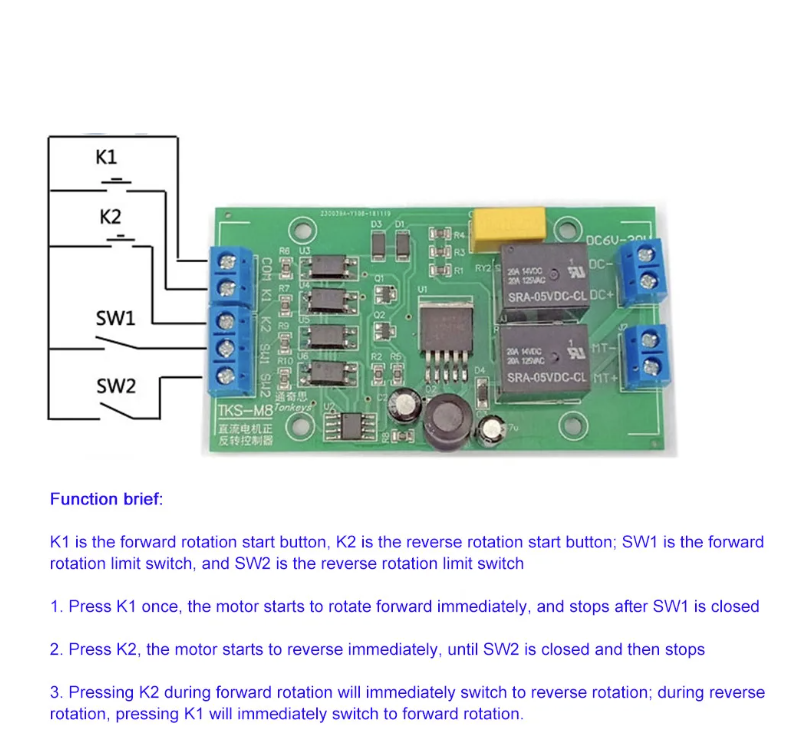

DC 6V 12V 24V DC Motor Forward and Reverse Controller

$5.99
Quantity
Pickup available at Robot Pi Shop

Specifications:

  • Working voltage: wide voltage DC4V~40V
  • Module power consumption: 0.6W (without load motor), static 0.1W
  • Signal input: active low level, the input is the negative pole of the optocoupler. When the voltage is lower than 2V, it is considered that there is a signal
  • Response speed: K1 K2 is 20mS, SW1 SW2 is 50mS
  • Output current: 20A
  • Action life: > 150,000 times




DC 6V 12V 24V DC Motor Forward and Reverse Controller
