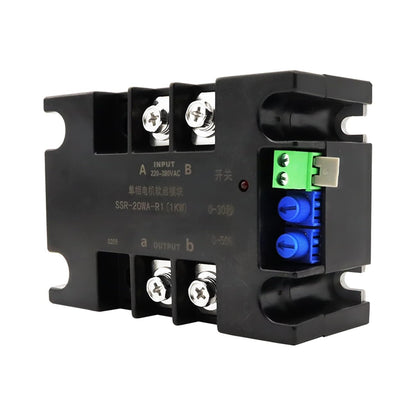

Features:

• Voltage : Single-Phase 220VAC 50-60Hz / 2-Phase 380VAC 50-60Hz
• Soft Start Time: 0-30 Seconds（Soft Start Time Refers to the Whole Process 0-220V, 0-380V）
• Starting voltage：0-50% (Adjustable Soft Start to Rated Voltage (220V-380V)
• Power : 2KW
• This Motor Soft Starter Module is Usually Used for Motors with the Following voltages and Frequency:
  • 220V ... (50Hz, 60Hz)
  • 230V ... (50Hz, 60Hz)
  • 240V ... (50Hz, 60Hz)
• Application: Ordinary Fans, Water Pumps, Belt Conveyors ,Single Phase Motors etc..

Specifications:

This Motor Soft Starter Can be Widely Used for Loads Such As Ordinary Fans, Water Pumps, Belt Conveyors, Ball Mills and Compressors ,No Need to Connect Bypass Contactor, Easy Wiring

It is an Ideal Replacement for Traditional Star/Delta Conversion, Auto-Coupling Buck, Magnetic Control Buck, Inverter and Other Step-Down Starting Devices

How to Choose the Suitable Model

According to the Actual Working Current 5 Times: Power ÷ Voltage × 5

For Example:

Your Motor is 8000W Power ÷ 220V Voltage × 5 = (181.81WA Suggest Choose 200WA) Should Choose the Parameter Closest and Larger to that Model

If there 2 or more motors are connected in parallel, please select the model based on the total Power X 1.2 times or More

Single Phase Motor Compared to Starter Module

Voltage Compatibility:

(220V + 0V = Single-Phase 220V, AC)

(230V + 0V = Single-Phase 230V, AC)

(240V + 0V = Single-Phase 240V, AC)

(220V + 220V = Two-Phase 380V--400V, AC)

Frequency: 50Hz, 60Hz

Soft Start Time is Adjustable 0-30 Seconds (Soft Start Time Refers to the Entire Process 0-220V, 0-380V)

Slowly Adjust the Starting Voltage from 0-50% , Reaching the Rated Voltage (220-380V)

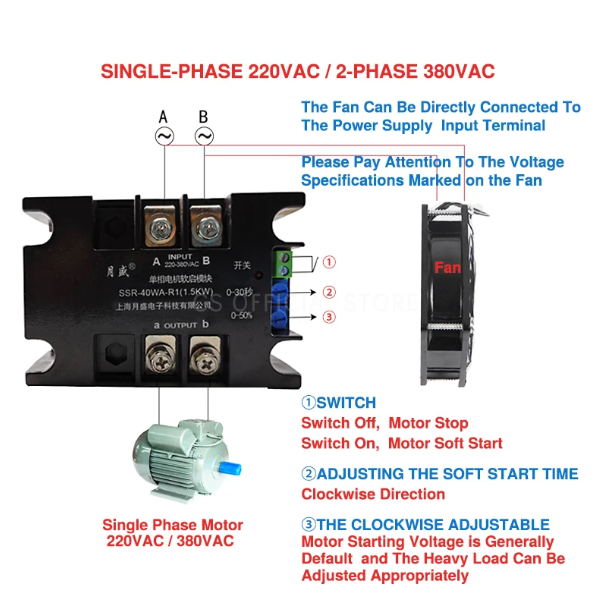

There Are Two Ways to Use it

1. After Closing the Switch, the Main Power will be Energized and Start Soft Start

2. Use the Switch to Control, Closing the Soft Start to Start, Open to Stop

The Soft Start Module Program: SSR-60WA-R1 has Soft Start and no Soft Stop

Warning:

1. Consider the Safety Margin  and Long Time Runing，2KW and Above Power, Please Attaching Radiator(Heat Sink) and Fan for Heat Dissipation
2. The Default Voltage of the Fan in this Link is 220V. If you need 380V Fan, Please Leave a Message
3. It is Necessary to Connect the Load When Operation or Testing, (the test result is Invalid if the Load is not Connected)
4. Please Do not Adjust the Soft Start time to the Min (0 Seconds 0 V, the Starting Current will be to Large too Burn the Module)
5. Do not Carry Voltage to the Control Switch on the Right Side R2 With Smooth Stop Function,Do not Disconnect the incoming line power  , and the Switch on the Right Side of the Module must be used to Control the start and stop ，If the motor has a brake function, the  Smooth Stop will not work
6. Do not use a Multimeter on the Load side to Judge the Quality of the product
7. When the Ambient Temperature is too High or the Heat Dissipation Conditions are not Good, Please Consider Increasing the Amps of Starter, In order to Prevent the Load from Short-Circuiting during Operation, you can Consider Connecting the Fast- Disconnect Switch or Fast Fuse (Corresponding Specification to the Starter) In series in the load loop
8. Working Environment Temperature Range -25°C~60°C
