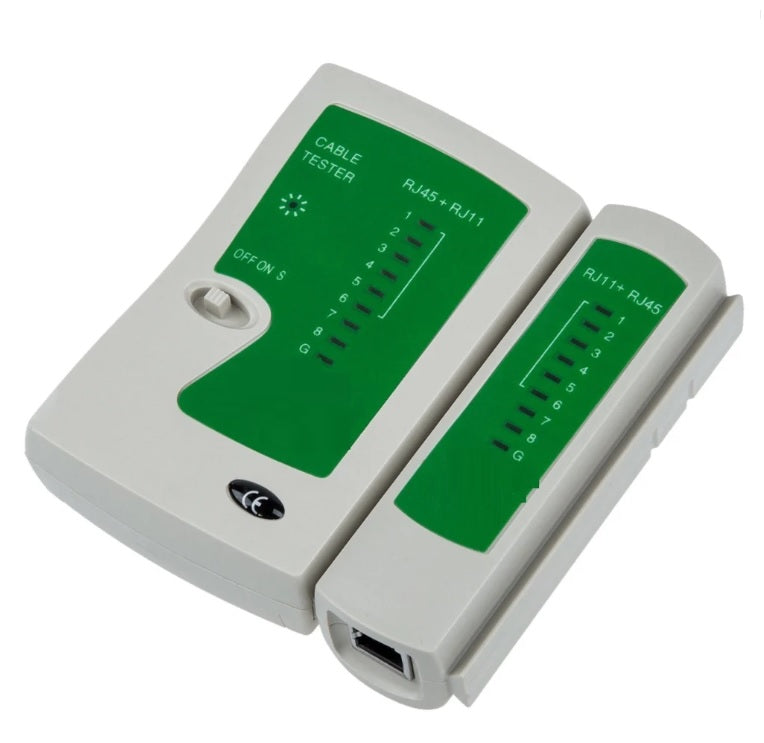

Network RJ45 RJ11 Cable Tester 468 with Remote

$4.99
Quantity
Pickup available at Robot Pi Shop
Voltage
9 V
Usage/Application
Network Cable Testing
Brand
Jpetr
Display
LED
Model Name/Number
RJ45-RJ11 Multi-Functional Network LAN Cable Tester
Material
PVC Plastic
Weight
150gm
Part Number
CPJ2016T0318
Connectors
RJ45
Height
27mm
Operating Current
25mA
Length
105mm
Width
105mm
Size
106 x 38 x 27 mm

RJ45-RJ11 Multi-Functional Network LAN Cable Tester.
It is ideal for testing the continuity of a cable with RJ11, RJ45 prior to installation. It adopts automatic scan mode which can rapidly get test result. Test correspondingly double-twisted cables 1, 2, 3, 4, 5, 6, 7, 8 and Ground. It has 9 LED lights to indicate connection on both remote and master unit with grounding test. Easy to find the connection problem and helps to recrimp in case rj54 connector is not crimped properly. It operates with 9V battery (battery not included). Keeps your network running smoothly by testing wrong connection, short circuit and open circuit.

Features:
  • Full LED indication lights on both main and remote unit
  • Check RJ11, RJ45 connectors
  • Verify continuity, opens, shorted or cross wire paired
  • Move switch to S to slowdown auto test feature
  • Small size and lightweight to carry
Specifications:
  • Indicator ：LED Lights
  • Operating Current ： 25mA
  • Power ： 9V Alkaline Battery (Not included)
  • LxWxH(mm) ： 106 x 96x 27
  • Main tester:
  • Size: 106*68*27mm
  • Weight: 68g
  • Remote tester
  • Size: 106*38*27mm
