Name: NVIDIA® Jetson Orin™ Nano Super Developer Kit
Brand: Robot Pi Shop
Availability: InStock

Robot Pi Shop

NVIDIA® Jetson Orin™ Nano Super Developer Kit

$0.00

Quantity

reComputer Super J4012 comes with Jetson Orin NX 16GB module, delivers up to 157 TOPS in MAXN Super Mode.
Your Jetson Orin Nano Developer Kit comes with an old firmware flashed at the factory, which is NOT compatible with JetPack 6.x. Therefore, you must upgrade to the latest firmware, before inserting SD card flashed with JetPack 6.x image (unless the firmware previuosly updated). Please use this link to download the latest software for the Jetson Orin Nano Super developer kit.

Excellent AI Performance for production: low power and low latency with up to 67 TOPS AI performance, featuring an Ampere architecture GPU and a 6-core ARM CPU, which enables multiple concurrent AI application pipelines and high-performance inference.

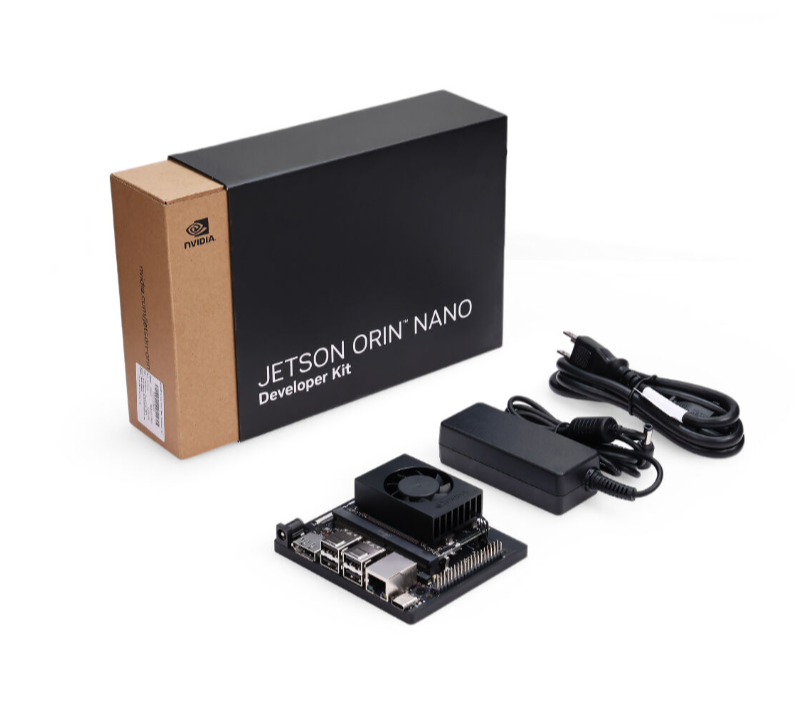

Hand-size edge AI device: compact size at 100mm x79mm x 21mm, includes Jetson Orin™ Nano 8GB module, a heatsink with a fan and a power adapter.

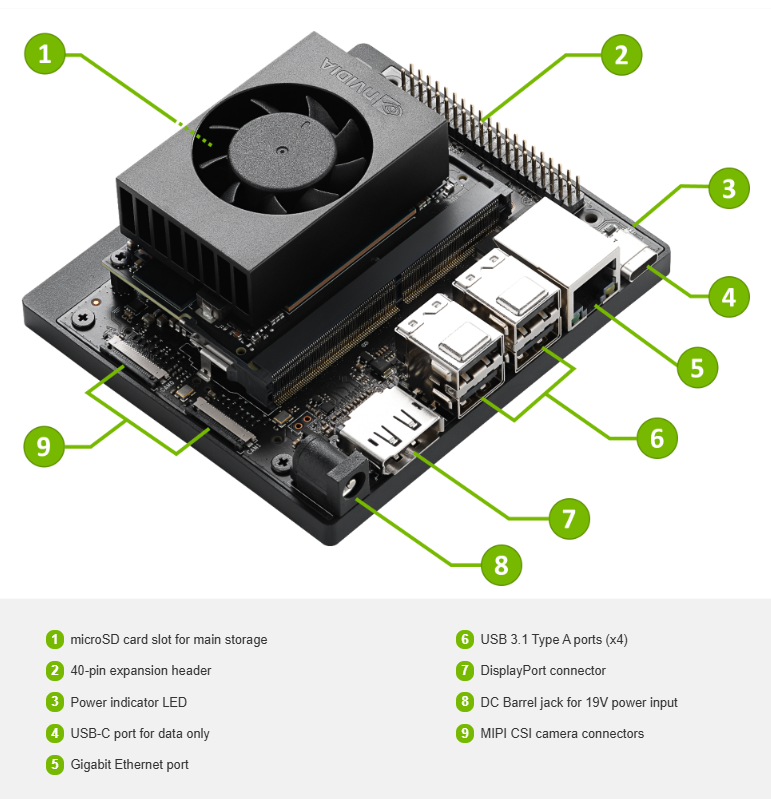

Expandable with rich I/Os: 4x USB 3.2 Gen 2 ports, DP 1.2, M.2 key E with pre-installed Wi-Fi module, 2x M.2 Key M for SSD, microSD slot, 2x MIPI CSI-2 connectors, Gigabit Ethernet, 40-pin GPIO.

Jetson Orin Nano Super Developer Kit configuration
	NVIDIA Jetson Orin Nano Developer Kit (original)	NVIDIA Jetson Orin NanoSuper Developer Kit
GPU	NVIDIA Ampere architecture 1,024 CUDA Cores 32 Tensor Cores 635 MHz	NVIDIA Ampere architecture 1,024 CUDA Cores 32 Tensor Cores 1,020MHz
AI PERF	40 INT8 TOPS (Sparse) 20 INT8 TOPS (Dense) 10 FP16 TFLOPs	67 TOPS (Sparse) 33 TOPS (Dense) 17 FP16 TFLOPs
CPU	6-core Arm Cortex- A78AE v8.264-bit CPU 1.5 GHz	6-core Arm Cortex- A78AE v8.264-bit CPU 1.7 GHz
Memory	8GB 128-bit LPDDR5 68GB/s	8GB 128-bit LPDDR5 102GB/s
MODULE POWER	7W\|15W	7W\|15W\|25W

Jetson Orin Nano System on Module
AI Performance	Jetson Orin Nano 8GB with SD card slot on module - 67 TOPS
GPU	NVIDIA Ampere architecture with 1024 NVIDIA® CUDA® cores and 32 Tensor cores
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory	8GB 128-bit LPDDR5 102 GB/s
Video Encoder	1080p30 supported by 1-2 CPU cores
Video Decoder	1x 4K60 (H.265) \| 2x 4K30 (H.265) \| 5x 1080p60 (H.265) \| 11x 1080p30 (H.265)
Power	7W-25W
Carrier Board
Storage		1x microSD slot (UHS-1 cards up to SDR104 mode)
Networking	Ethernet	1x Gigabit Ethernet (10/100/1000M)
PCIe	M.2 KEY M	4x PCIe GEN3 2x PCIe GEN3
	M.2 KEY E	1x M.2 Key E(pre-installed 1x Wi-Fi/Bluetooth combo module); PCIe (x1), USB 2.0, UART, I2S, and I2C
I/O	USB	4x Type A USB 3.2 Gen2 1x Type C for UFP
	CSI Camera	2x MIPI CSI-2 (22pin)
	Display	1x DP 1.2 (+MST) connector
	Fan	1x 4 pin Fan Connector (5V PWM)
	CAN	1x CAN
	Multifunctional Port	1x 40-Pin Expansion header 1x 12-Pin Control and UART header
	RTC	RTC 2-pin, supports CR1220 but not included
Power Supply		9V-19V DC
Mechanical (W x D x H)		100mm x 79mm x 21mm
Product Weight		0.176 kg
