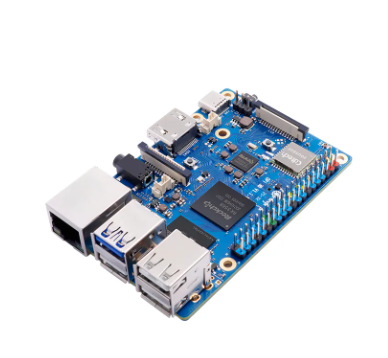

Orange Pi 3B Single Board Computer powered by Rockchip RK3566, quad-core 64-bit Cortex-A55 processor, built-in AI accelerator NPU with 0.8Tops computing power; VPU can achieve 4K@60fps H.265/H.264/VP9 video decoding and 1080P@100fps H.265 video encoding, 1080P@60fps H.264 video encoding, support 8M ISP and HDR; with 2GB/4GB/8GB (LPDDR4/ 4X), supports 16GB/32GB/64GB/128GB/256GB eMMC module, 16MB/32MB SPI Flash, has Wi-Fi5, BT5.0, with BLE support.
Features:
- Orange Pi 3B 4G is powered by Rockchip RK3566 quad-core 64-bit processor with 22nm advanced process, up to 1.8GHz main frequency, integrated ARM Mali G52 2EE graphics processor with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 support, embedded high-performance 2D acceleration module.
- Orange pi 3B 4GB Microcontroller built-in AI accelerator NPU with 0.8Tops computing power; VPU can achieve 4K@60fps H.265/H. 264/VP9 video decoding and 1080P@100fps H.265 video encoding, 1080P@60fps H.264 video encoding, support 8M ISP and HDR.
- This single board computer with 4GB (LPDDR4/ 4X), supports 32GB/64GB/256GB eMMC module, 16MB/32MB SPI Flash, has WiFi 5, Bluetooth 5.0, with BLE support.
- Orange Pi 3B Mini PC Computer references a wealth of interfaces, including HDMI output, M.2 M-KEY, TF card slot, Gigabit LAN port, USB2.0, USB3.0, 3.5mm headphone jack, MIPI DSI port, eDP port, MIPI CSI camera port, multifunctional 40 Pin expansion port, etc., which can be widely applied to TV boxes, high-end tablet, edge computing, face recognition, smart security, smart home and other fields, empowering rich AI applications and IoT scenarios.
- Orange Pi 3B supports Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
- Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch. Pretty much anything else, because Orange Pi is open source. The perfect alternative to the Raspberry Pi.
Specifications:
| SoC | Rockchip RK3566 |
| CPU | Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz |
| GPU | ARM Mali G52 2EE graphics processor; upport OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1; Embedded high performance 2D acceleration hardware |
| NPU | Integrated RKNN NPU AI accelerator with 0.8Tops@INT8 performance; Support one-click conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models |
| VPU | 4K@60fps H.265/H.264/VP9 video decoding; 1080P@100fps H.265 video encoding; 1080P@60fps H.264 video encoding |
| RAM | 2GB/4GB/8GB (LPDDR4/4x) |
| Memory | Support eMMC module:16GB/32GB/64GB/128GB/256GB; SPI Flash: 16MB/32MB; M.2 M-KEY slot（optional）: SATA3 or PCIe2.0 NVME SSDs; Micro SD slot |
| WiFi+ Bluetooth | Wi-Fi 5+BT 5.0，BLE(20U5622) |
| Ethernet | 10/100/1000Mbps Ethernet (On-board PHY chip: YT8531C) |
| Video Output | 1* HDMI TX 2.0 , up to 4K@60fps; 1*MIPI DSI 2 lane; eDP1.3 |
| Camera | 1*MIPI CSI 2 lane camera interface |
| USB | 1*USB 2.0 support Device or HOST mode; 1*USB 3.0 HOST; 2*USB 2.0 HOST |
| Audio | 3.5mm headphone jack audio in/out |
| 40Pin | 40Pin functional expansion interface, supporting the following interface types: GPIO, UART, I2C, SPI, PWM |
| Power Source | Type-C 5V3A Power Supply |
| Supported OS | Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems. |
