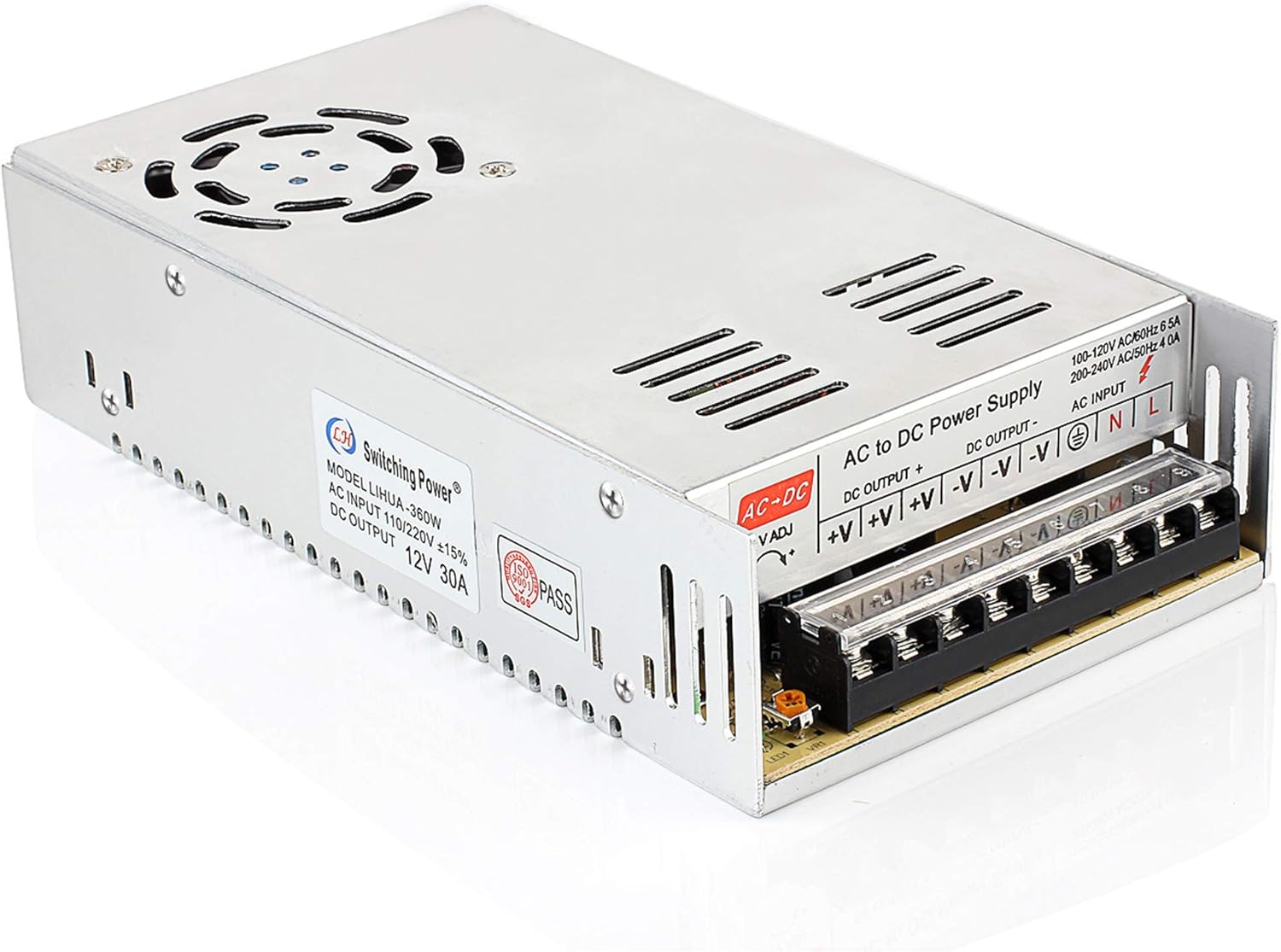

Switching Power Supply 12V 30A

$11.99
Quantity

Features:

  • DC Voltage: 12V DC
  • Current : 30A
  • Ripple & Noise: 80MV
  • DC Adjustable Range: ±10%
  • Rated Voltage Voltage Tolerance: ±2.0%
  • Line Regulation: ±0.5%
  • Load Regulation: ±1% Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC AC
  • Voltage Range: 85-264VAC
  • Frequency Range: 47-63Hz
  • Efficiency:85%
  • AC Current: 0.86/115V 0.4A/230V
  • AC Inrush Current: 20A/115V 40A/230V
  • Leakage Current< 0.5mA /240VAC
  • Over-load: 105%-150% hiccup mode,Auto-recovery
  • Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
  • Over-temp. : Shut down O/P voltage, Auto-recovery
  • Working temp.: -10~ +60C° (Refer to output load derating curve)
  • Working Humidity:20 ~ 90% RH, non-condensing
  • Storage Temp.: -10~ +60C°
  • Storage Humidity: 10 ~ 95% RH
  • Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
  • Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
  • Safety standards: CE,RoHS,FCC,ISO9001
