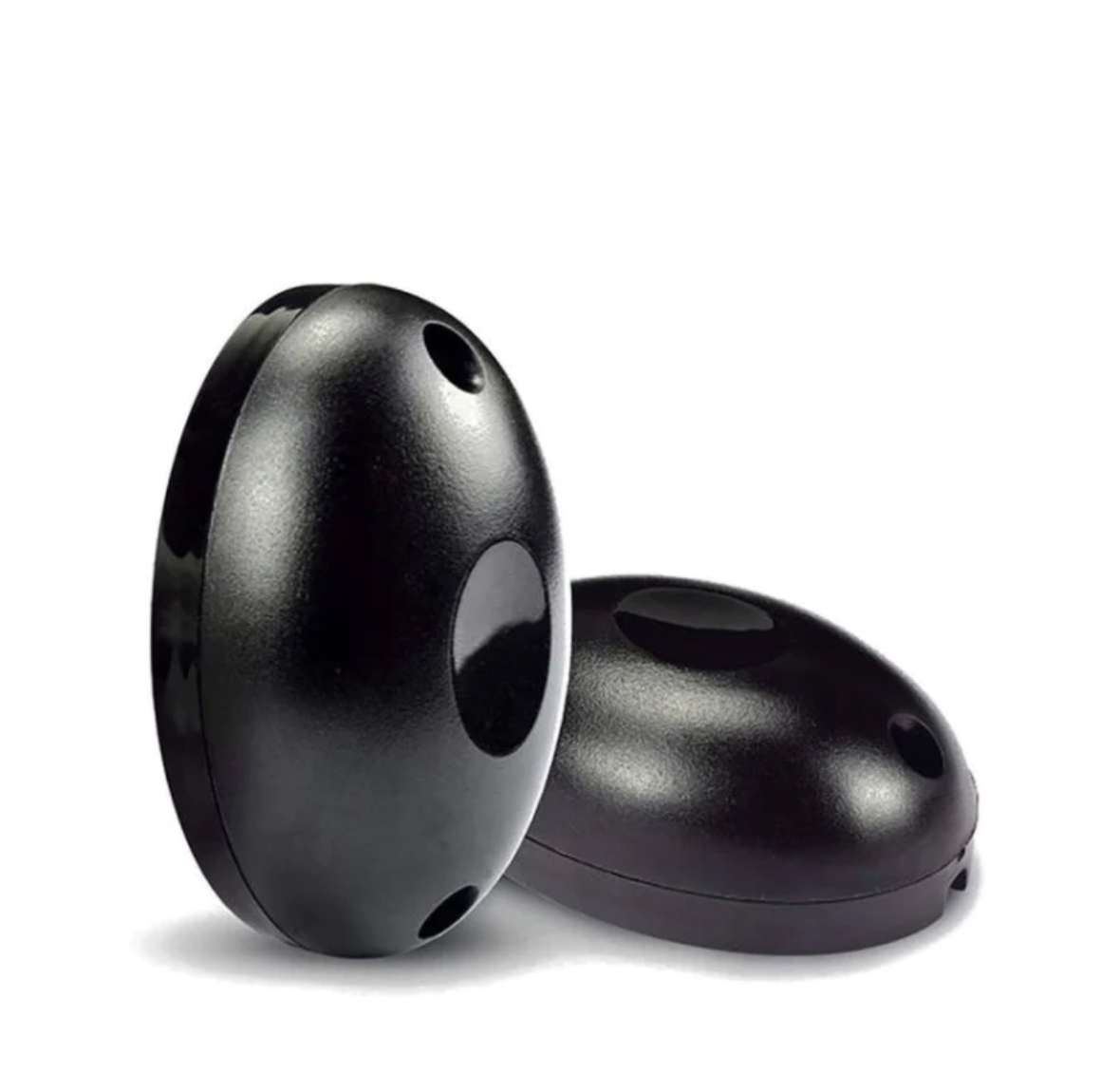

Name: Single Beam ABO-20 Meters Infrared Detectors
Brand: Robot Pi Shop
SKU: HA-000025-DVR
Price: 7.99 USD
Availability: InStock

Robot Pi Shop

Single Beam ABO-20 Meters Infrared Detectors

$7.99

Quantity

Motion Sensor:

SAFE AND RELIABLE : The Pair of Infrared Detectors Can Reliably Generate Visible Infrared Rays Up To 20 Meters Long. The Barrier Detector Frequency of the Single Beam Alarm Is 1.92 Khz, The Power Supply Is 12 V Dc and The Wavelength Is 940 Nm.
WATERPROOF MATERIAL : IP55 Rain Cover (Fog), Dust (Worm), And Other Comprehensive Weather-related Sealed Structures, Infrared Detector Can Maintain Normal Operation in Harsh Environments. In Severe Weather (Fog, Rain, Dust, Etc.) The Range of the Infrared Detector Can Be Reduced To 30%.
WIDE APPLICATION : The Infrared Detector Is Suitable for Security Systems in Schools, Office Buildings, Hospitals, Parking Lots, Apartments, and Other Places. The Barrier Detector is Widely Used in Alarm Systems, Access Control Systems, Etc.

Single Beam Light Radar:

UNIQUE LOOK : High-power Transmitter, 90% Sensitivity Margin, High-power Infrared Transmitter-receiver Pair Tube, Low-power Processing Technology Lightning Protection Circuit. High Level of Rfi/emi Capability and Unique Digital Filter Circuit.
ACTIVE REGULATION : Resistant to Strong Light Up To 50,000 Lux, Built-in Automatic Adjustment of a Strong Light Filter System, To Avoid the Impact of Strong Light or Car Lights. Moreover, The Detector Will Automatically Enhance Sensitivity When Encountering Heavy Fog or Bad Weather. (Agc Circuit)
INSTALLATION : The Best Installation Height Should Be More Than 20 cm, Installation Distance Should Be Not Less Than 1 M; Infrared Protection Device Should Be Vertically Placed, And in The Same Horizontal Line. First, Please Install the Receiver, Then the Transmitter (When in A Straight Line, Off Light of Receiver Goes Out), Then fix, connect Line and Complete Installation.
