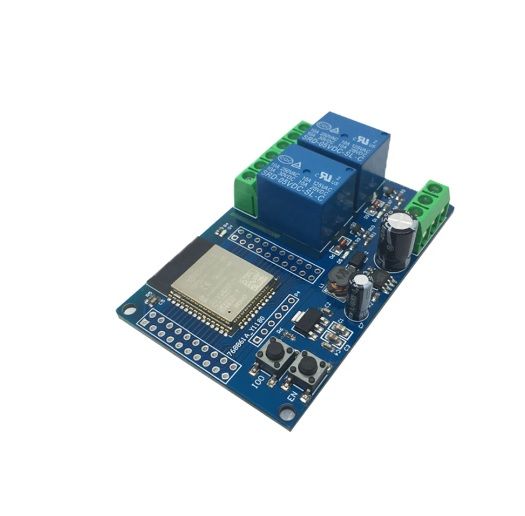

2 Channel WIFI Relay Module

$11.99
Quantity
Pickup available at Robot Pi Shop
Description:
1: Wide range of applications
2: Small size
3: Simple to use
4: Support DC5-60V power supply
5: It is suitable for ESP32 secondary development and learning, smart home wireless control and other occasions.


Features:
1. Onboard mature and stable ESP32-WROOM-32E module, large-capacity 4M Byte Flash;
2. The I/O port and UART program download port of ESP32 module are all led out, which is convenient for secondary development;
3, power supply voltage DC7-60V;
4, Onboard ESP32 module IO0 programmable button and reset button;
5, ESP32 supports the use of Arduino IDE development tools, providing reference programs in the Arduino development environment;
6. On-board 2-way 5V relay, output switch signal, suitable for controlling the load whose working voltage is within AC250V/DC30V;
1 programmable LED and relay indicator onboard.


Package included:
1*Development board
2*Double row needles
1*Single row needle
1*Single line cap
