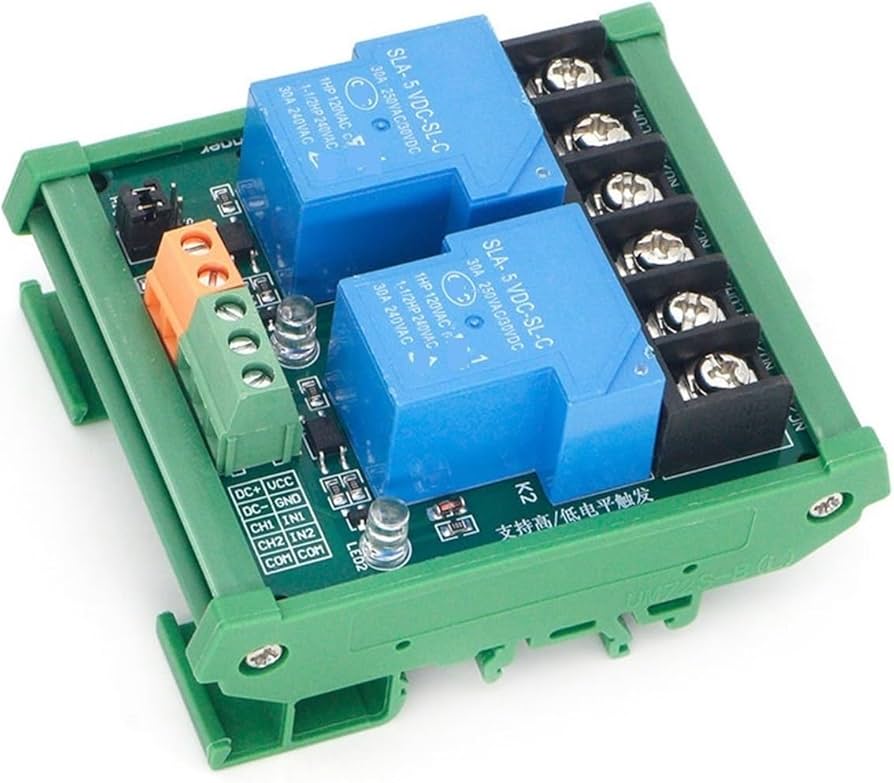

Specifications:

• Supply voltage: 5V

• Quiescent current: 5mA

• Maximum operating current: 190mA / 80mA / 50mA

• Trigger mode: low trigger, high trigger

• Load voltage: DC 30V or AC 250V

• Load current: 30A

• Relay life: more than 100,000 times

• Size: about 70 * 72 * 22MM

• Trigger voltage range:
  5V low trigger module: 0-2VDC relay on (ON), 3-5VDC relay off (OFF)
  5V high trigger module, 3.3-5VDC relay (ON), 0-2.5VDC relay off (OFF)

• Using double-sided FR-4PCB board

• Using high-power relay, control the load up to 30A

• With each optocoupler isolation, anti-interference ability

• Black 9500 terminals, more convenient for high-current wiring

• Each circuit has a relay on LED indication

• The modules comply with international safety standards with isolation slots in the control and load areas

Applications:

• PLC automation equipment control, industrial system control, internet of things control, home intelligent control, electronic hobbyist development experiment, all kinds of circuit modification
