Conveyor Belt Kit

$559.00
Quantity

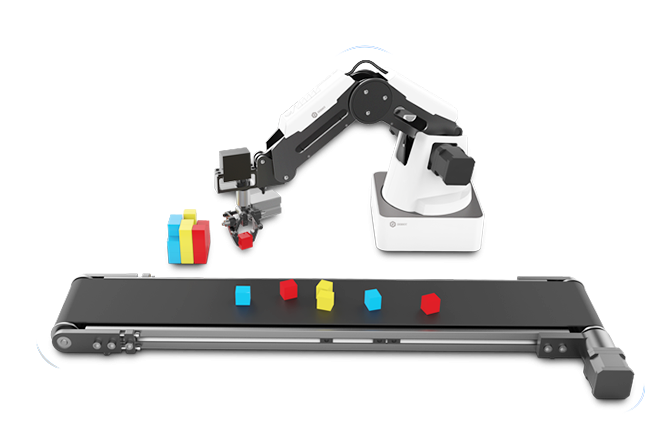

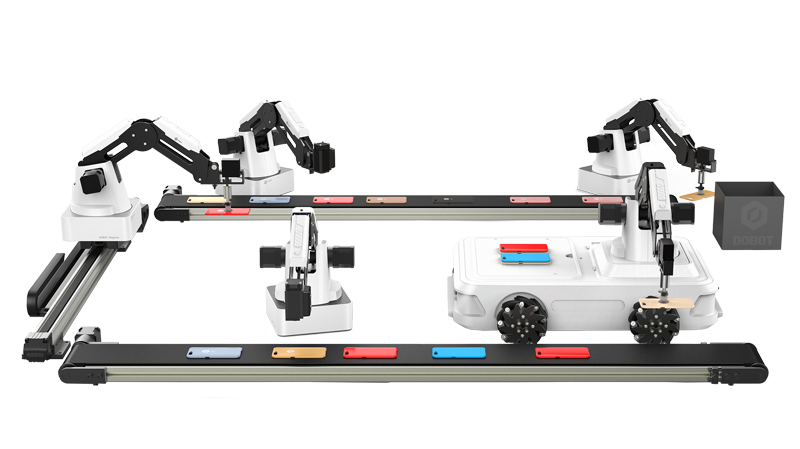

The Conveyor Belt Kit for the Dobot Magician allows for a complete production line simulation. The conveyor belt has adjustable speed and distance and includes a color sensor and photoelectric switch. Combined with the Dobot Magician, these are the ideal essentials to create a highly effective simulated production line, or even to apply to actual factory scenes. Includes colorful wooden blocks.
Payload 500 g

Specifications:

  • Effective delivering distance 600 mm
  • Maximum speed 120 mm/s
  • Maximum acceleration 1100 mm/s²
  • Net Weight 4.2 kg
  • Weight (including packing) 5.34 kg
  • Dimension 700 mm × 215 mm × 60 mm

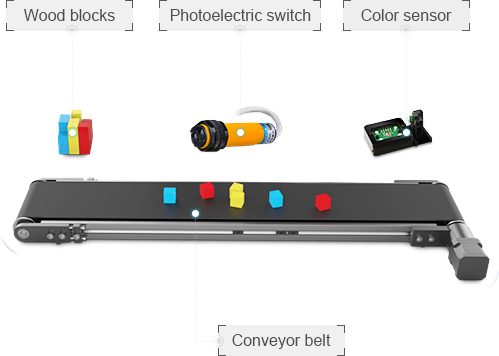

Conveyor belt
Mini conveyor belt is a great component for building an automation process with you robot.

Photoelectric switch
Detect whether there are objects in front of the photoelectric switch.

Color sensor
An easy-to-use color sensor for you to categorize red, blue and green objects.

Wood blocks
These colorful wooden cubes are easy to grab, move and pile, the ideal material for you to get a grip of automation process.
