Feature 1: Advanced mmWave Sensing for Breathing, Heartbeat and Human Presence Detection

The MR60BHA2 60GHz mmWave Sensor Module excels in detecting breathing and heartbeat with pre-set algorithms, and also includes human static presence functionality.

• Human Static Presence: Measures effectively up to 6 meters.
• Breathing & Heartbeat Detection: Accurate for a single person at 1.5 meters with the device stationary.

*The above parameters have been tested in the empty deployment environments.

Feature 2: Powered by ESP32 & ESPHome & No-Code Integration with Home Assistant

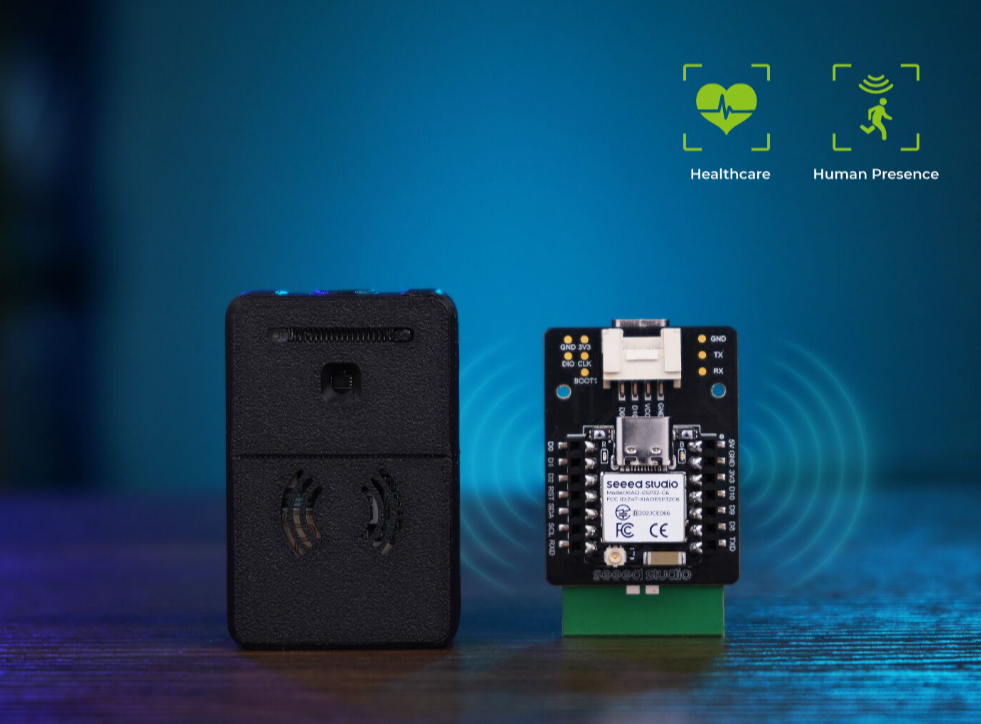

The kit features a Seeed Studio XIAO ESP32C6 with pre-flashed ESPHome firmware, enabling seamless plug-and-play integration with Home Assistant. Configure the device in ESPHome, and no-code setup for Home Assistant in 1-2 minutes.

Feature 3: Ambient Light Sensing for Responsive Automation

The mmWave sensor module includes a BH1750 light sensor, offering precise ambient light detection from 1 to 65,535 lux, with adjustable measurements up to 100,000 lux. Supported by ESPHome and Arduino IDE, it allows you to collect ambient light readings as frequently as every second, enhancing your automation's responsiveness to environmental changes.

Feature 4: Customizable Interaction

This 60GHz mmWave Sensor Module is equipped with a WS2812 RGB LED, allowing for DIY customization of the indicator light.

Feature 5: Extended Sensing or Automation with Grove

We’ve added one additional Grove Connector to the mmWave Module for easy expansion with your own Grove sensors and actuators (e.g., PIR and Relay).

Feature 6: Open Source 3D Printed Enclosure

To simplify deployment, we offer a 3D printed enclosure available for free download, providing a starting point to customize your casing design.

Feature 7: Open for Customization

Want to tailor-make the kit to fit your unique applications?

For more information about 3D point cloud data generation and interference zone configuration when customizing mmWave modules. Seeed provides one-stop R&D customization and manufacturing services for fast development from concept to production.
