SW-520D Metal Ball Tilt Shaking Position Switche

SW-520D Ball Angle Tilt Vibration Shaking Switch Sensor Arduino,PIC,Raspberry Pi

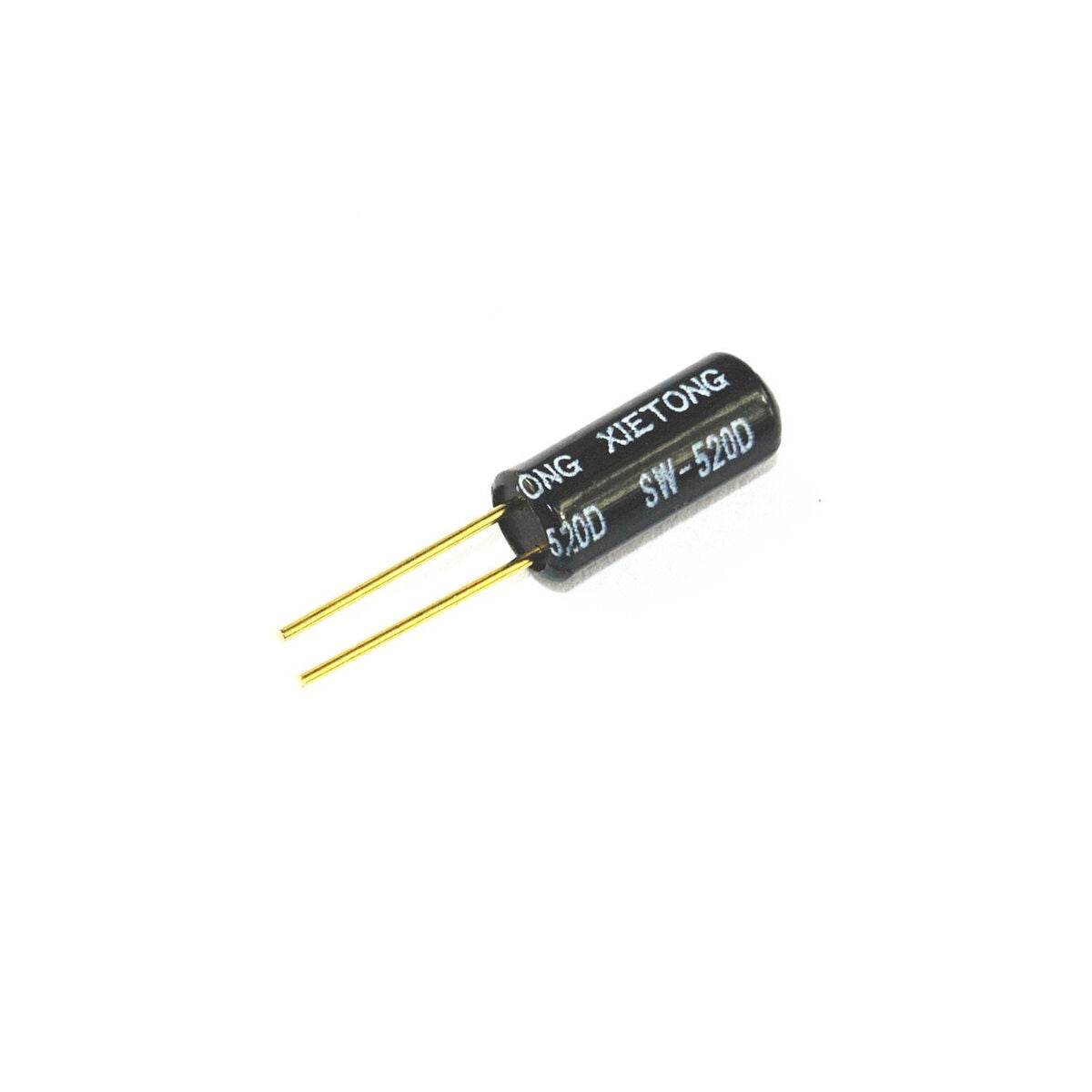

SW-520D is a commonly available roller-ball type tilt sensor which consists of two conductive elements (poles) and a conductive free mass (rolling ball), encapsulated in the same case.

The switch would be in the “off position” in the horizontal position, “on position” when raised to 10-90 degree or shakes.

These tilt switches use a metal ball which creates the same outcome as a mercury tilt switch, without the use of mercury and are ROHS compliant.

Specifications:

• Double bead ball
• Sensitivity Range : > ± 15 Degrees
• Voltage : 20V
• Current : 0.3A
• Type : Normally Closed
• Length : 11.5mm
• Diameter : 5.2mm
