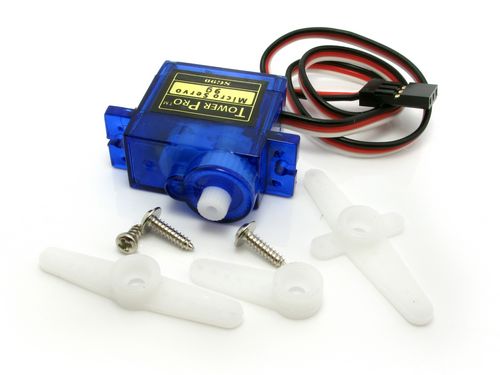

SG90 Servo Motor

$2.99
Quantity
Pickup available at Robot Pi Shop

Servo Motor Wire Configuration

Wire Number

Wire Colour

Description

1

Brown

Ground wire connected to the ground of system

2

Red

Powers the motor typically +5V is used

3

Orange

PWM signal is given in through this wire to drive the motor



SG-90 Features

  • Operating Voltage is +5V typically
  • Torque: 2.5kg/cm
  • Operating speed is 0.1s/60°
  • Gear Type: Plastic
  • Rotation : 0°-180°
  • Weight of motor : 9gm
  • Package includes gear horns and screws

Applications

  • Used as actuators in many robots like Biped Robot, Hexapod, robotic arm etc..
  • Commonly used for steering system in RC toys
  • Robots where position control is required without feedback
  • Less weight hence used in multi DOF robots like humanoid robots
