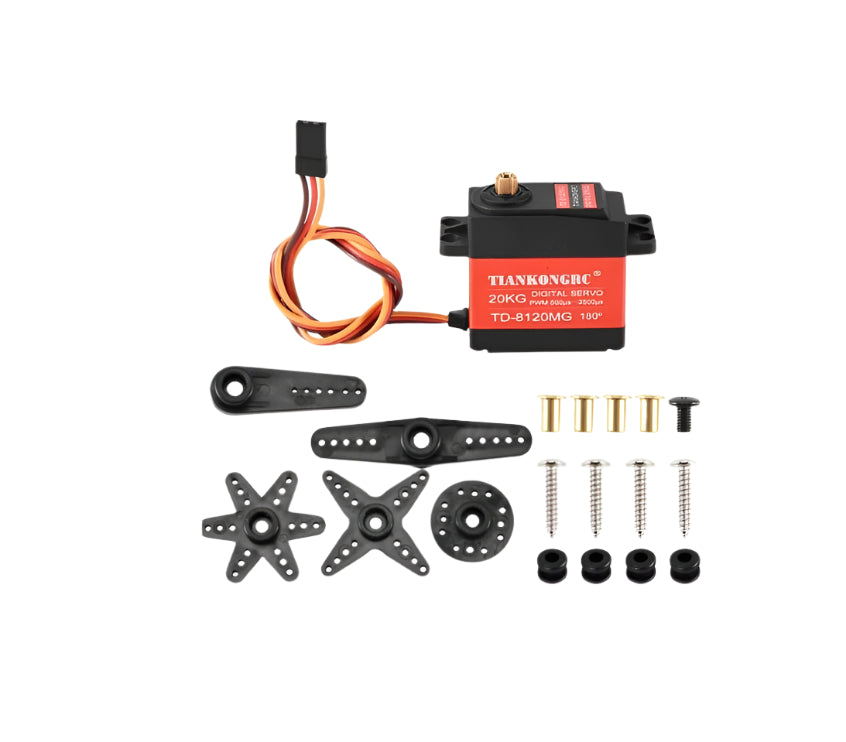

TD-8120MG 20KG Digital Servo 180 Degree

$11.99
Quantity

Features:

  • TD-8120MG Servo Motor 20Kgf.cm
  • 180º Servomotor
  • High torque
  • Greater durability and strength
  • Has perforations for fixing
  • Integrated connector cable for better installation
  • Metallic gears
  • Ideal for robotic projects, drones and aeromodelling
  • Waterproof model
  • Comes with several accessories.

Specifications:

  • Model: TD-8120MG
  • Dead-band: 2μs
  • Working voltage: 4.8 to 6.6V DC
  • Speed (4.8V): 0.18 sec / 60 °
  • Speed (6.6V): 0.14 sec / 60 °
  • Torque (4.8V): 18.5 kgf.cm
  • Torque (6.6V): 21.8 kgf.cm
  • Wire length: 30cm
  • Dimensions (LxWxH): 40.5×20.2x40mm
