Description:
- Retain the merits of the V4.0 version
- Laminated design
- PCB immersion gold processing technology
- IIC interface
- Bluetooth module communication interface
- SD card module communication interface
- Retain the merits of the V4.0 version
- Laminated design
- PCB immersion gold processing technology
- IIC interface
- Bluetooth module communication interface
- SD card module communication interface
- APC220 wireless rf modules communication interface
- RB URF v1.1 ultrasonic sensors interface
- 12864 LCD string of line and parallel interface
- 32 servo controller interface

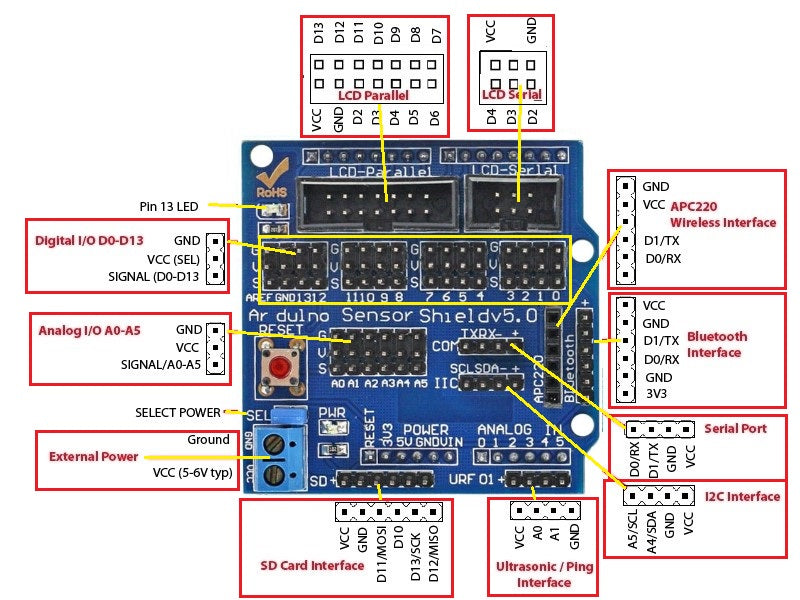

- Each functional module has a buckled port with VCC, GND, and Output, which has a corresponding port on the Sensor Shield, connected with a pin 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure, and more professional looking.
- just plug & play.
- Operating Voltage : 5VDC.
- Input Voltage : 7-12VDC.
- Buckled Analog Port : Handy, solid connection to 6 Analog inputs with VCC/GND.
- Digital IO port : 13 ports prepared for digital modules or servos.
- Analog IO Port : 2.54 grid male pin header connections.
- Buckled Communication Port : Selectable between I2C and UART.
