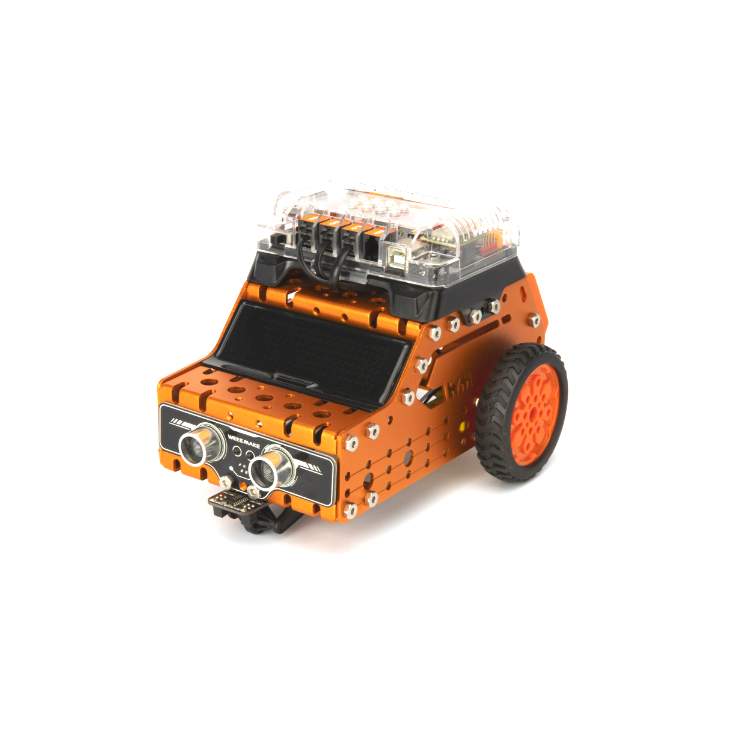

WeeeBot is an entry-level STEAM education robot kit, developed in robot construction platform WeeeMake.
• To embrace the STEAM trend in world-wide education system, we developed WeeeBot to help students get hands-on coding and robotic experience.
• Focusing on teaching, learning, having fun experience for Math, Technology, Computer Science courses.
• Support WeeeBot (Scratch 3.0) and Arduino IDE coding. Support APP control in both IOS and Android platform.

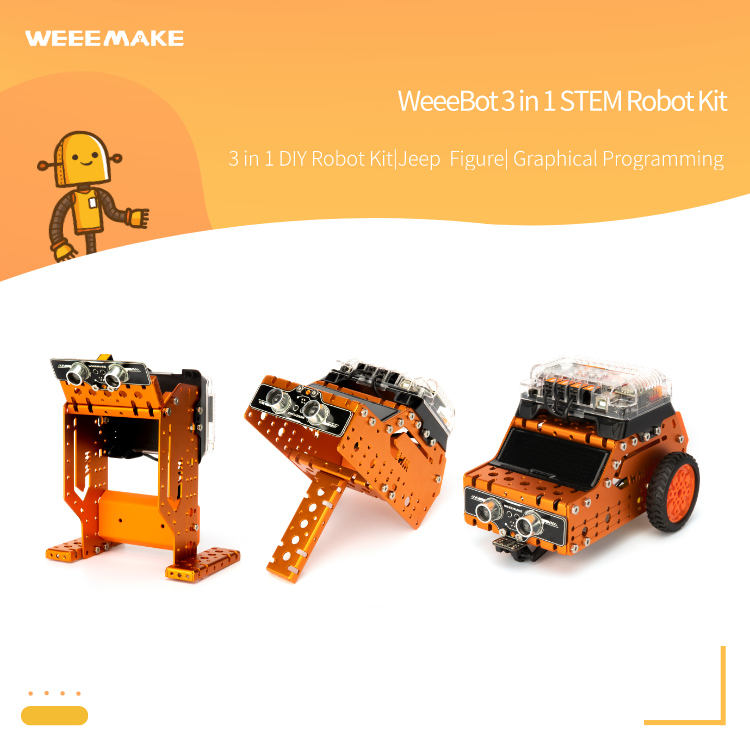

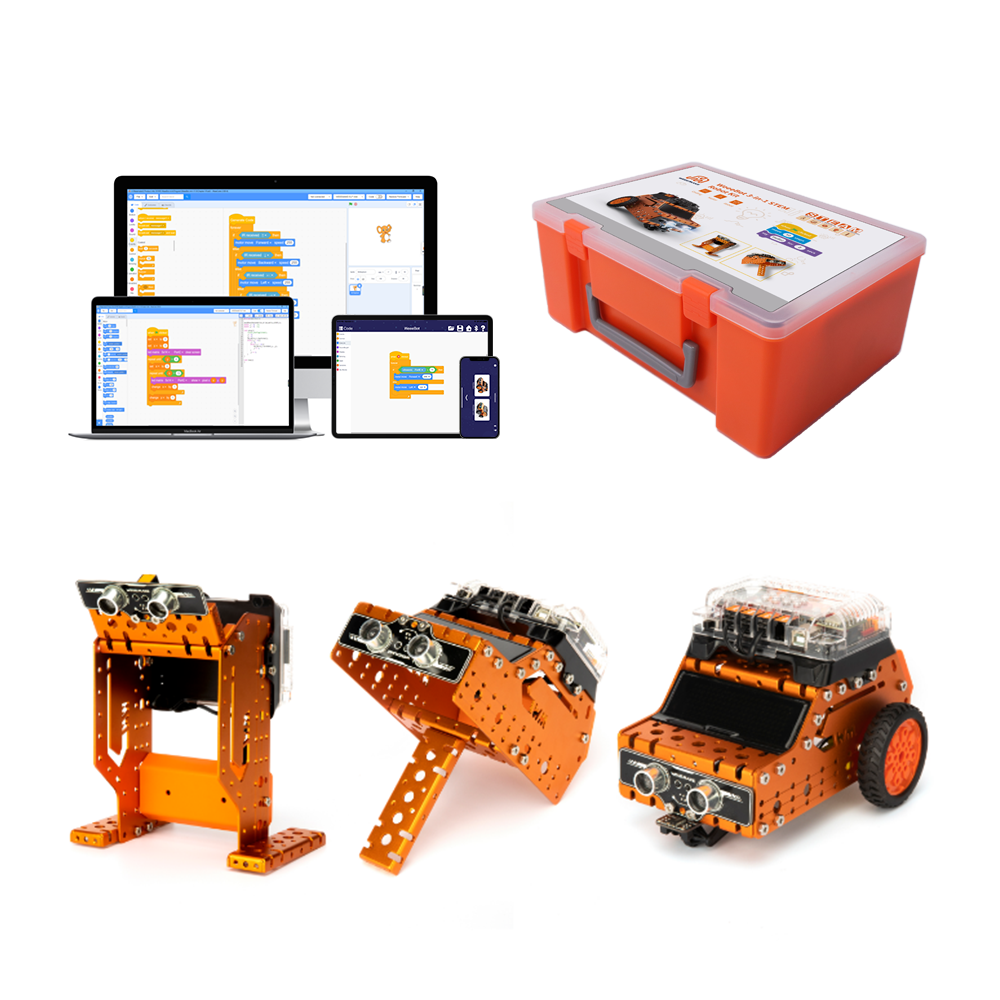

Projects

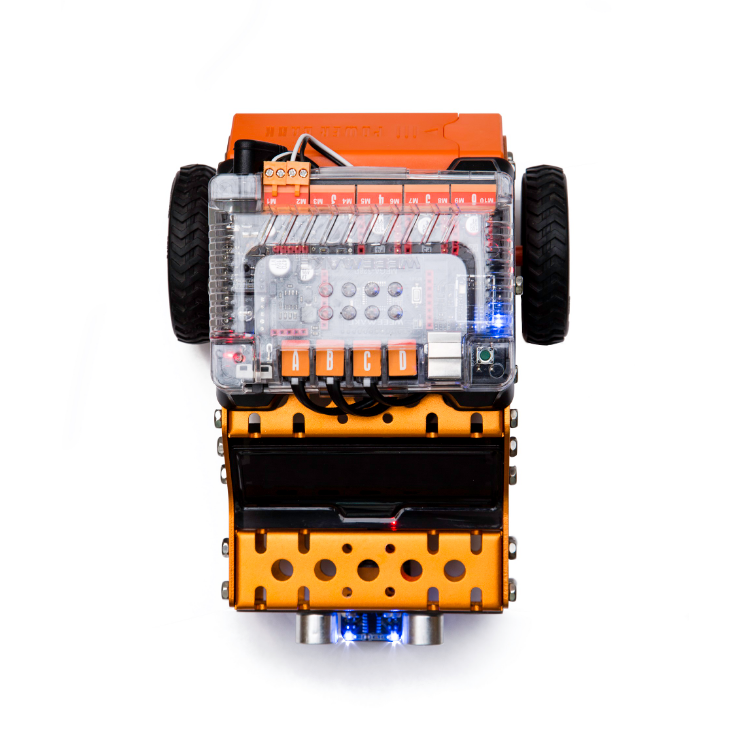

1.Three-wheel Robot Car

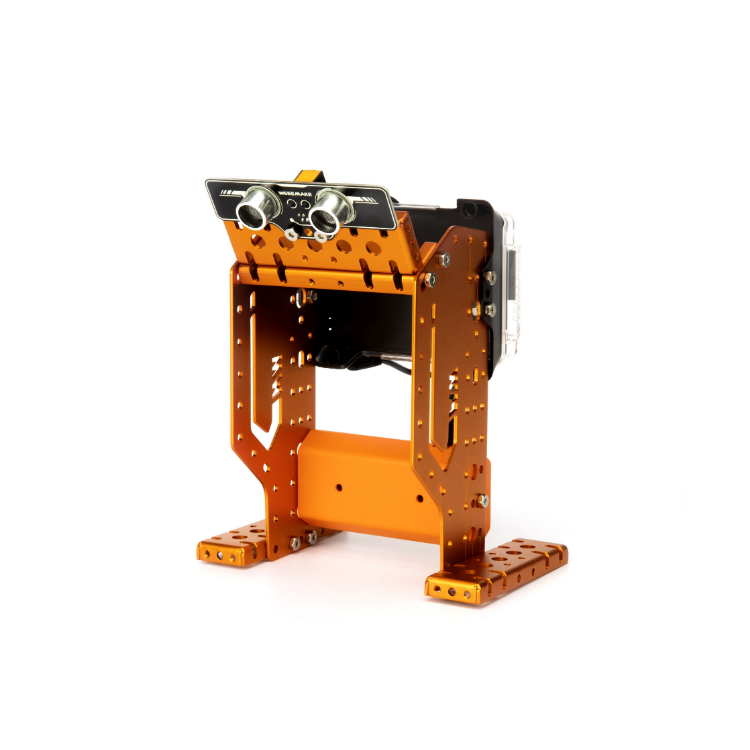

2.Distance Measure Robot

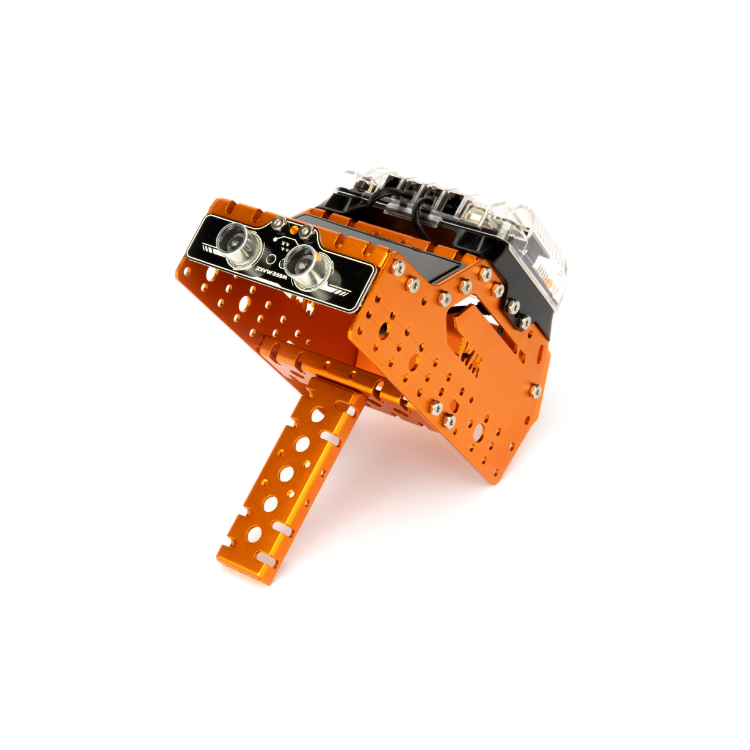

3.Smart Lamp


Enhanced Hands-on Ability
With heavy-duty mechanical parts, easy-to-use electronic modules like ELF mainboard, RGB ultrasonic sensor, Line-following sensor, light sensor, sound sensor, buzzer, RGB LED, IR receiver, Bluetooth module, you can get an enhanced hands-on experience on robot car that is programmable in wireless way.

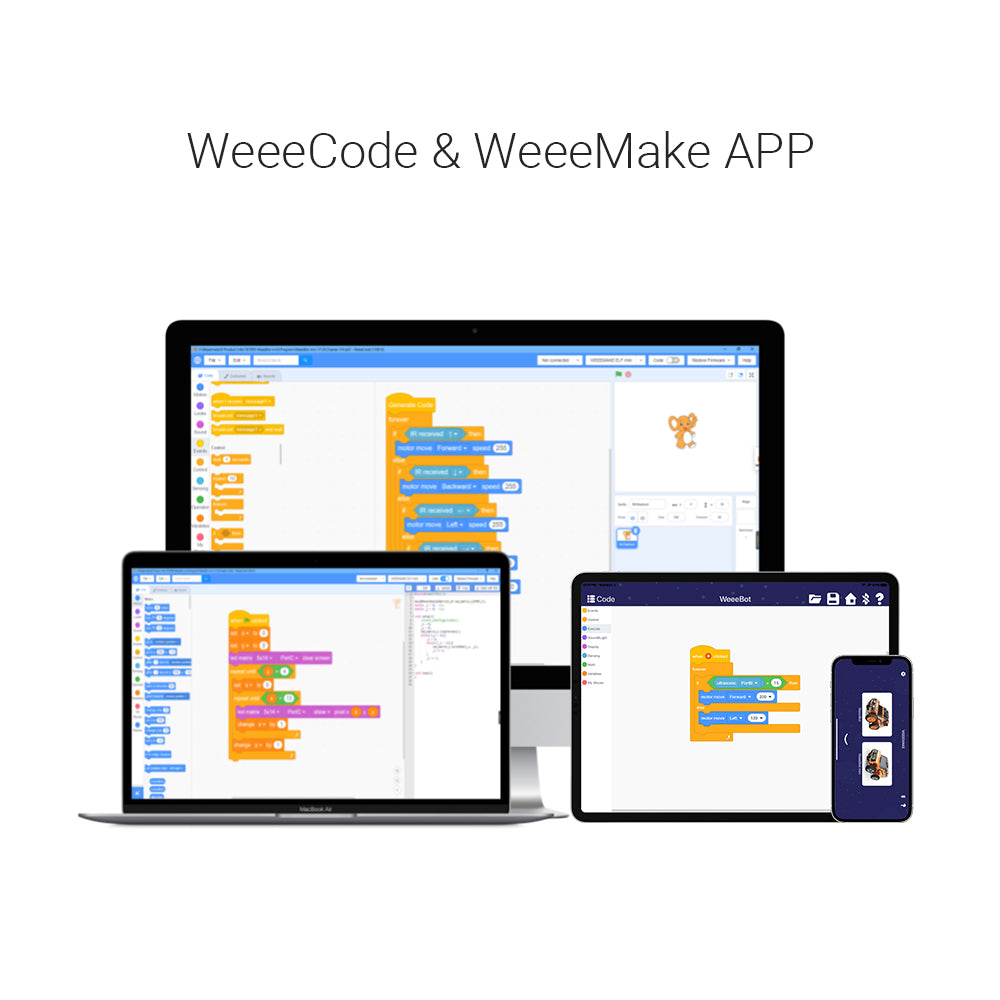

Easy but Powerful WeeeCode, Support Scratch & Arduino Programming
WeeeBot Jeep is fully compatible with WeeeCode which is a graphical programming environment based on Scratch 3.0 Open-Source Code. It makes programming projects and interactive applications easier through simply dragging and dropping function blocks. Learning programming is way more fun when your code controls a robot. Based around an Arduino board, this kit will teach you all about programming a micro-controller board to control physical objects using sensors.


Control and Code by One Touch
WeeeMake APP is a control and program application designed for Weeemake robot. It provides six modes to play with your robot such as manual control, line-following, obstacle avoidance, music, voice control, and coding.

Easy Wiring
Modules in this kit all equipped with RJ11 ports for easy wiring. Just by connecting the modules together, robots can be built in a quick way. All the wiring is simple and very clean.


16 Chapters, 36 Courses Lesson Plan


ELF Mainboard

WEEEMAKE ELF mainboard is designed on the basis of modular design style whose microchip is replaceable. This high-performance mainboard is designed for education.

1. Replaceable microchip: Support ATMEGA-328P, ESP32 chip, etc
2. Same port for motor driver and sensor pin port, easy to use.
3. Random wiring, work with WeeeCode and Arduino.

RGB Ultrasonic Sensor

The RGB ultrasonic sensor is an electronic module used to measure the distance with a measurement range of 4 cm to 500 cm. It can be used to help a car avoid obstacles or other projects related to ranging. The ultrasonic transmitter send ultrasonic wave in a certain direction and start counting time. The ultrasonic wave spreads in the air, and when the obstacle is encountered on the way, it returns immediately. The ultrasonic receiver immediately stops timing while receives the reflection wave. The transmission speed of the sound wave in the air is 340m/s. According to the time (T) recorded by the timer, the distance (S) between the transmitting point and obstacle is calculated, that is, S = 340*T/2.

At the same time, both ultrasonic probes has an built -in RGB LED light.

Double-way Line-following Sensor

The line-following sensor is using the feature of infrared that will get different reflection strength on the difference color surface. During the driving process of the robot car, the line-following sensor continued to transmit infrared light to the ground. When infrared light encountered a white surface, a long reflection occurred and the receiver on the sensor will receive those reflected infrared; When infrared light encountered a black surface, the infrared light is absorbed, and sensor’s receiver cannot receive infrared or receive very few. The position of the black or white line is determined by whether to receive the infrared light returned from the reflection or not.

The double-way line-following sensor has two groups of infrared transmitter and receiver tube S1, S2.

LED Matrix Panel

The LED panel matrix screen is composed of a blue LED light into a matrix, which can control display numbers, letters or symbols. The LED distribution is 5 rows multiple 7 columns. The sensor comes with a half-transparent black cover.




Light Sensor

Light sensor is a sensor based on the principle of optoelectronic effects of semiconductor (converting optical signals into electrical signals). It can detect the light intensity of the environment around the sensor, convert the strength of light into a electrical signal, and transmit it to the mainboard.

Sound Sensor

Sound Sensor converts the voice signal to electrical signal based on a microphone. It can be used to detect the sound intensity in the surrounding environment. The detected volume is enlarged by computing amplifier, and then transmitted to the mainboard. It can be used to do interactive projects, such as voice control switches, volume control robot car, etc.

IR Receiver

The IR receiver has a component that can detect about 38kh IR signal, which can receive infrared signals emitted by IR remote control. IR remote control is currently using the most widely used communication and remote control methods, with the advantages of small size, low power consumption, and strong signal, etc.

IR Remote Controller

IR remote controller is a common used remote control device. It has an IR transmitting light. When pressing the buttons on the remote control, a specific IR light signal will be emitted. This signal is received by the IR receiver and interpreted the signal.

Bluetooth 4.1 Module

This Bluetooth module is designed for remote control. It can connect to the mobile phone Bluetooth, computer Bluetooth, Bluetooth dongle, etc. Not only can it be remotely controlled robots, but also wireless programming, download program, etc.
