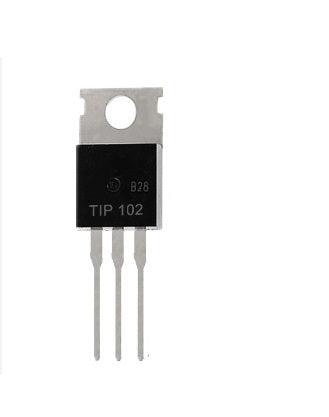

TIP102

$0.50
Quantity

Features / technical specifications:

  • Package Type: TO-220
  • Transistor Type: NPN
  • Max Collector Current(IC): 8A
  • Max Collector-Emitter Voltage (VCE): 100V
  • Max Collector-Base Voltage (VCB): 100V
  • Max Emitter-Base Voltage (VEBO): 5V
  • Max Collector Dissipation (Pc): 80 Watt
  • Minimum & Maximum DC Current Gain (hFE): 1000 To 20000
  • Max Storage & Operating temperature: -65 to +150 Centigrade

PNP Complementary:

PNP Complementary of TIP102 is TIP107

Replacement and Equivalent:

The max collector-emitter and collector-base voltage of the transistor is 100V but if your requirement is less than 60V then you can also use the exact match TIP100 and if your requirement are above 60V and below 80V then you use TIP101. Other possible equivalents are 2N6530, 2N6535, 2N6536, 2SD498, 2SD721, 2SD721, 2SD722, 2SD768, 2SD1417, BDW73B, BDW73C TIP102, BDW73C, D44D1 TIP102, D44D2.

TIP102 Transistor Explained / Description:

Before we discuss the TIP102 transistor, we will understand a little bit about how a darlington transistor works. A darlington transistor is a pair of two transistors in one transistor package that is connected in a special way that increases the output gain very much. The TIP102 transistor also provides DC current gain of 1000 to 20000 the transistor comes in TO-220 package and has many features which make it suitable to use for industrial purposes. It has very low collector to emitter saturation voltage. The maximum collector current of the transistor is 8A hence it can drive load of upto 8A and 15A in pulse with the max load voltage of 100V. The base current of the transistor is 1A and max collector dissipation is 80 watts. Moreover the transistor also have low collector-emitter saturation voltage requirements which makes it ideal to use in battery operated, portable and low voltage equipment.

Where We Can Use it & How to Use:

TIP102 can be as an amplifier and a switch for low speed switching. As a switch this transistor is capable to drive load of upto 8A. It can also be used at the output of arduino and other electronic platforms to drive loads. Other than that it can also be used as an amplifier to amplify arduino and other electronic signals.

Applications:

  • Audio Amplifier Stages
  • Audio Power Amplifier Circuits
  • Driving or Switching Loads upto 8A
  • Battery Chargers
  • Motor Drivers

How to Safely Long Run in a Circuit:
