HX711 Module Load Cell Weight Sensor 20KG

$8.99
Quantity

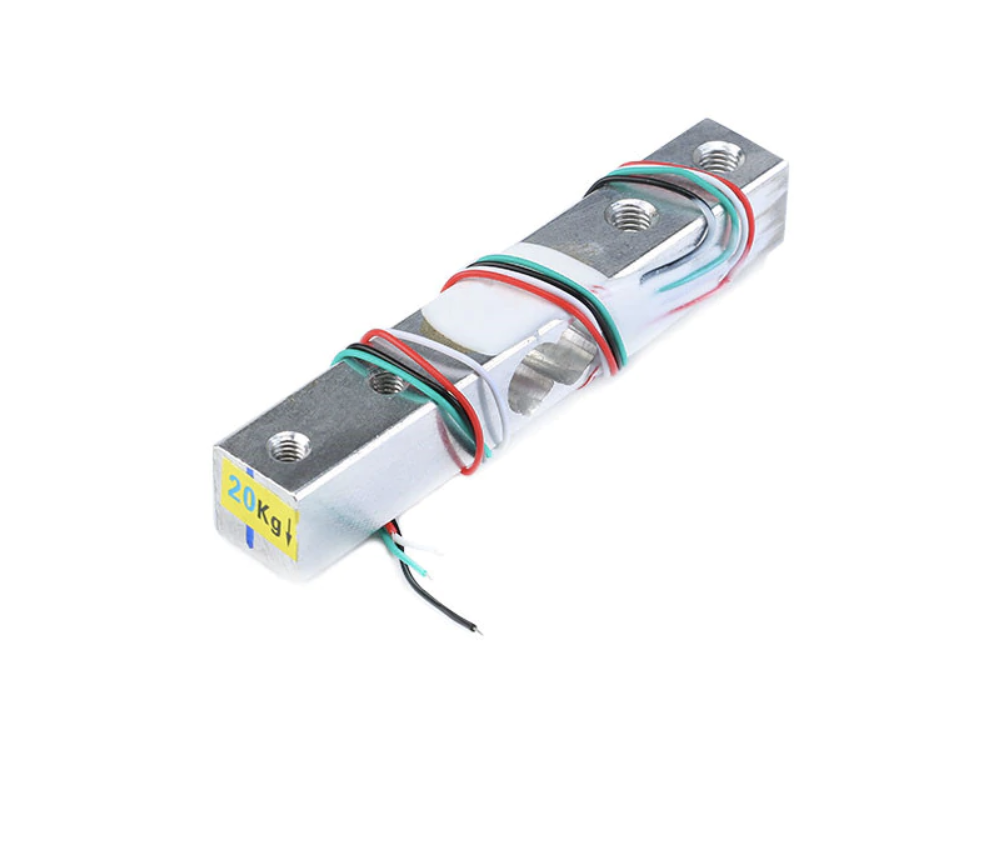

20kg Load Cell

  • Four leads, easy to use.
  • 5-10V drive voltage applied, the force is directly output as a voltage change signal.
  • Dimensions: 12.7mm * 12.7mm * 80mm
  • Sensor through the screw hole at one end fixed and the other end to keep floating state, applying gravity following the direction indicated by label.
  • Particular attention must not directly push the white plastic cover part, so as not to damage the sensor.

20kg Load CellHX711 AD Module
Connection
  • Red to E+
  • Black to E-
  • Green to A+
  • White to A-

HX711 Weight Module

This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale designwith two analog input channelthe internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressureweighing sensor mode)is of high precisionlow cost is an ideal sampling front-end module.

  • Simple digital control and serial interface: pin-driven controlsno programming needed
  • Selectable 10SPS or 80SPS output data rate
  • Simultaneous 50 and 60Hz supply rejection
  • Current consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA
