Specifications:

• Working voltage: DC 3.7V~24V
• Working current: maximum 5A, 3A for long-term continuous work

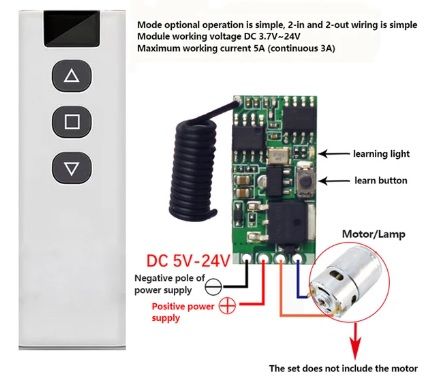

• Wiring mode: two in two out

Description:

1. Pairing method: Press the learning button on the module once, the indicator light will flash and light up, press any button on the remote control once, the module will flash after receiving the signal, indicating that the pairing is successful. (Only support the specific remote controllers shipped by our company. Remote controllers of other brands need to provide parameters to customer service to check whether they are compatible.)
2. Press the learning button 8 times to set the incoming call on, and then press it 8 times to turn off the incoming call on, and the factory default is to turn off the incoming call on.
3. Press the learning button 9 times to clear all learned remote controls.
