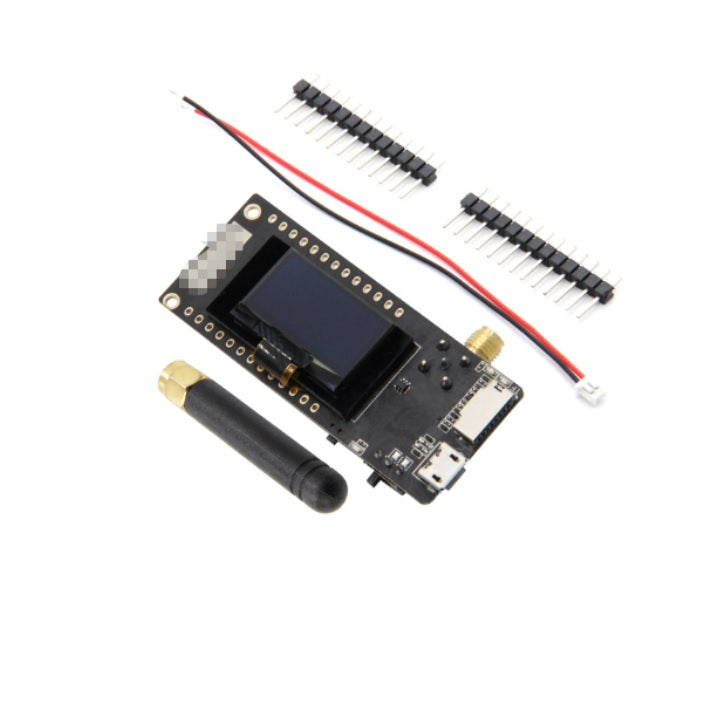

ESP-32 TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module

Paramenters:

At the TTGO LoRa V2.1 ,we add the S-M-A and IP5306 to the board,which make it can do more things.
In terms of the power switch, we have changed the switching interaction mode.
The added S-M-A antenna can enhance signal transmission.Product Description
Working voltage: 1.8~3.7v
Acceptable current: 10~14mA
Transmit current: 120mA@+20dBm
90mA@+17dBm
29mA@+13dBm

Operating frequency: 915MHz
Transmit power: +20dBm
Receive sensitivity: -139dBm@LoRa &62.5Khz&SF=12&146bps
-136dBm@LoRa &125Khz&SF=12&293bps
-118dBm@LoRa &125Khz&SF=6&9380bps
-123dBm@FSK&5Khz&1.2Kbps
Frequency error: +/-15KHz

FIFO space: 64Byte
Data rate: 1.2K~300Kbps@FSK
0.018K~37.5Kbps@LoRa
Modulation Mode: FSK,GFSK,MSK,GMSK,LoRa TM，OOK

Interface form: SPI

Operating temperature: -40℃- +85℃

Digital RSSI function
Automatic frequency correction
Automatic gain control
Fast wake-up and frequency hopping
Highly configurable data packet handler
SMA Antenna
IP5306
