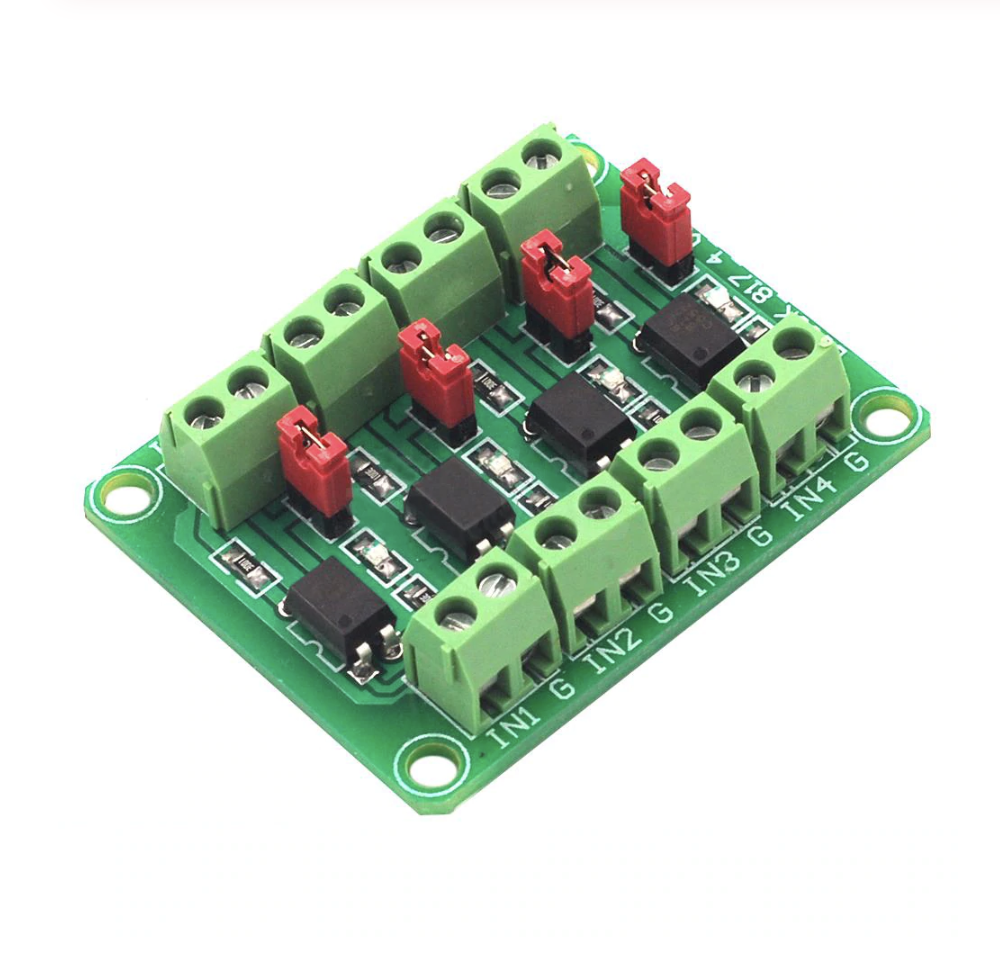

PC817 4 Channel Optocoupler Isolation Board

$2.99
Quantity
Pickup available at Robot Pi Shop

Specifications:

  • Driving Port Signal Voltage:3.6-24V
  • Output Port Voltage Port:3.6-30V
  • Jumper Cap Can Achieve Output Port Is High POtential Or Pull Down Output
  • Onboard 4-Channel 817 Are Independent:can achieve different voltage control at then same time

NOTE:

The input port is shared with GND;
The output ports are independent of each other;
It is optocoupler output.V and G will be connected after input valid signa in input port.

PC817 4 Channel Optocoupler Isolation Board
