SN7473 Dual JK flip-flop with reset; negative-edge trigger

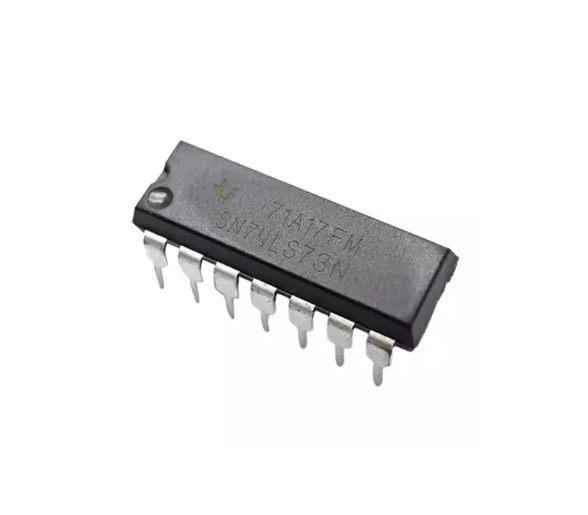

SN7473 IC from the TTL IC series includes two jk flip-flops, each unit of which has two inputs (j, k) and one output, a pulse clock and a reset base. A flip-flop is a binary storage device capable of storing one bit of information. The output of this IC is available in two ways: simple and reverse.

Features:

• Low-power dissipation
• Complies with JEDEC standard no. 7A
• ESD protection: HBM JESD22-A114F exceeds 2000 V / MM JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 C to +80 C and from -40 C to +125 C

Refer to the image below to see the performance table of IC SN7473:

Refer to the image below to see SN7473 IC bases:

To see the internal structure of IC SN7473, refer to the image below:
